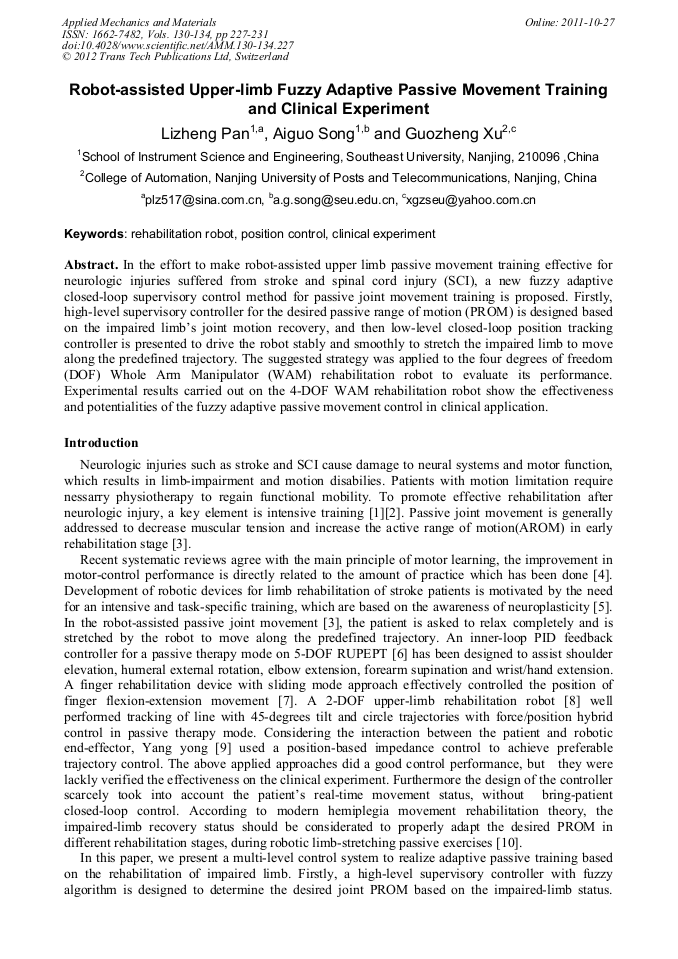

Robot-Assisted Upper-Limb Fuzzy Adaptive Passive Movement Training and Clinical Experiment

Abstract:

In the effort to make robot-assisted upper limb passive movement training effective for neurologic injuries suffered from stroke and spinal cord injury (SCI), a new fuzzy adaptive closed-loop supervisory control method for passive joint movement training is proposed. Firstly, high-level supervisory controller for the desired passive range of motion (PROM) is designed based on the impaired limb’s joint motion recovery, and then low-level closed-loop position tracking controller is presented to drive the robot stably and smoothly to stretch the impaired limb to move along the predefined trajectory. The suggested strategy was applied to the four degrees of freedom (DOF) Whole Arm Manipulator (WAM) rehabilitation robot to evaluate its performance. Experimental results carried out on the 4-DOF WAM rehabilitation robot show the effectiveness and potentialities of the fuzzy adaptive passive movement control in clinical application.

• Periodical: Applied Mechanics and Materials (Volumes 130-134)
• Pages: 227-231
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.130-134.227
• Online since: October 2011
• Authors: Li Zheng Pan, Ai Guo Song, Guo Zheng Xu
• Keywords: Clinical Experiment, Position Control, Rehabilitation Robot

References

[1] G. Kwakkel, R. van Peppen, R.C. Wagenaar, S. Wood Dauphinee,C. Richards, A. Ashburn, K. Miller, N. Lincoln, C. Partridge, I. Well-wood, and P. Langhorne: Effects of augmented exercise therapy time after stroke: a meta-analysis. In Stroke, 35: p.2529–2539, (2004).

DOI: 10.1161/01.str.0000143153.76460.7d

[2] R. Teasell, J. Bitensky, and N. A. Bayona: The role of timing and intensity of rehabilitation therapies. In Stroke Rehabilitation, 12(3): p.46–57, (2005).

DOI: 10.1310/etdp-6dr4-d617-vmvf

[3] Guozheng Xu, Aiguo Song, and Huijun Li: Control System Design for an Upper-Limb Rehabilitation Robot. In Advanced Robotics, 25: p.229–251, (2011).

DOI: 10.1163/016918610x538561

[4] Arno H. A. Stienen, Edsko E. G. Hekman: Dampace: Design of an Exoskeleton for Force-Coordination Training in Upper-Extremity Rehabilitation. In Journal of Medical Devices, Vol. 3 / 031003-1 sep. (2009).

DOI: 10.1115/1.3191727

[5] Vallery, H.; Veneman, J.; van Asseldonk, E.; Ekkelenkamp, R.; Buss, M.: Compliant Actuation of Rehabilitation Robots. IN Robotics & Automation Magazine, Vol: 15, Issue: 3 , pp.60-68, (2008).

DOI: 10.1109/mra.2008.927689

[6] Balasubramanian, S.; Ruihua Wei; Perez, M.; Shepard, B.; Koeneman, E.; Jiping He: An Exoskeleton Robot for Assisting Rehabilitation of Arm Functions. IN Virtual Rehabilitation, p.163–167, (2008).

DOI: 10.1109/icvr.2008.4625154

[7] Andreas Wege, Konstantin Kondak, Günter Hommel: Development and control of a hand exoskeleton for rehabilitation. In Human Interaction with Machines, pp.149-157, (2006).

DOI: 10.1007/1-4020-4043-1_16

[8] MS Ju, CCK Lin, DH Lin, et al: A rehabilitation robot with force-position hybrid fuzzy controller: hybrid fuzzy control of rehabilitation robot. IEEE Trans on Neural Systems Rehab Eng, 13: pp.349-358, (2005).

DOI: 10.1109/tnsre.2005.847354

[9] Yong Yang; Lan Wang; Jie Tong; Lixun Zhang: Arm Rehabilitation Robot Impedance Control and Experimentation. Robotics and Biomimetics, 2006. ROBIO '06. IEEE International Conference on Publication: 2006, pp: 914 – 918.

DOI: 10.1109/robio.2006.340342

[10] Riener R, Lunenburger L, Jezernik S, Anderschitz JM, Colombo G, Dietz V: Patient-cooperative strategies for robot-aided tread-mill training: first experimental results. IEEE Trans Neural Syst Rehabil Eng. 2005, 13(3): 380-394.

DOI: 10.1109/tnsre.2005.848628

[11] Aiguo Song, Juan Wu, Gang Qin, Weiyi Huang:  A novel self-decoupled four degree-of-freedom wrist force/torque sensor. In Measurement, 40 (2007) 883–891.

DOI: 10.1016/j.measurement.2006.11.018
