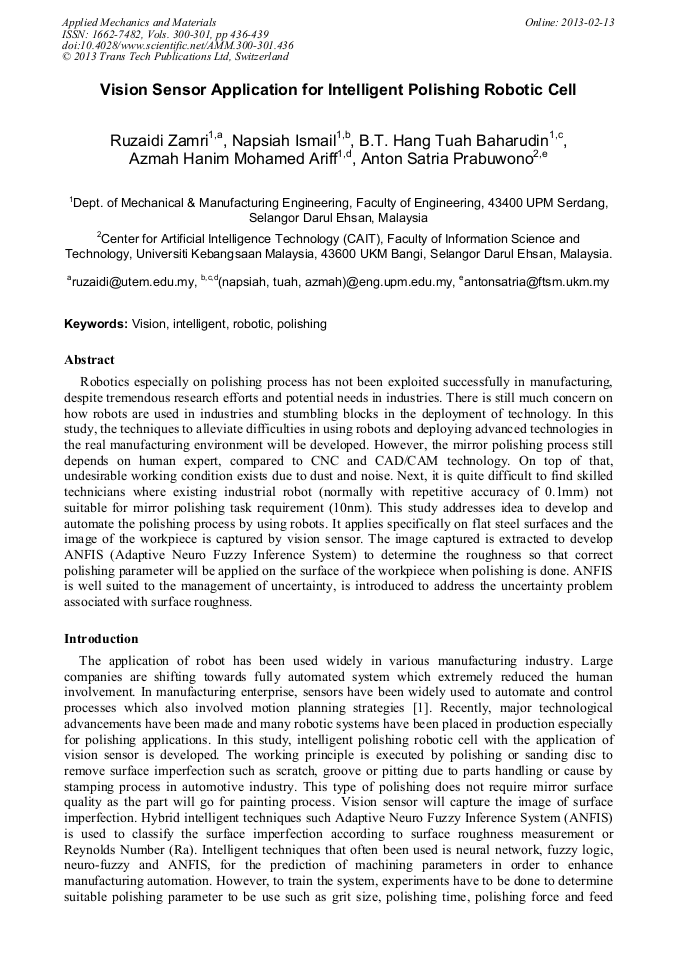

Vision Sensor Application for Intelligent Polishing Robotic Cell

Abstract:

Robotics especially on polishing process has not been exploited successfully in manufacturing, despite tremendous research efforts and potential needs in industries. There is still much concern on how robots are used in industries and stumbling blocks in the deployment of technology. In this study, the techniques to alleviate difficulties in using robots and deploying advanced technologies in the real manufacturing environment will be developed. However, the mirror polishing process still depends on human expert, compared to CNC and CAD/CAM technology. On top of that, undesirable working condition exists due to dust and noise. Next, it is quite difficult to find skilled technicians where existing industrial robot (normally with repetitive accuracy of 0.1mm) not suitable for mirror polishing task requirement (10nm). This study addresses idea to develop and automate the polishing process by using robots. It applies specifically on flat steel surfaces and the image of the workpiece is captured by vision sensor. The image captured is extracted to develop ANFIS (Adaptive Neuro Fuzzy Inference System) to determine the roughness so that correct polishing parameter will be applied on the surface of the workpiece when polishing is done. ANFIS is well suited to the management of uncertainty, is introduced to address the uncertainty problem associated with surface roughness.

References

[1] L. Basanez and J. Rosell, Robotic Polishing Systems, IEEE Robotics & Automation Magazine, no. September, p.35–43, (2005).

DOI: 10.1109/mra.2005.1511867

[2] M. C. Lee, S. J. Go, and J. Y. Jung, Development of a User-friendly Polishing Robot System, in IEEE/RSJ, 1999, p.1914–(1919).

[3] K. C. Meng, W. Lin, and B. T. Ng, Self-compensating Closed Loop Real-Time Robotic Polishing System, in IEEE, Int. Conf. on Control, Automation, Robotics and Vision, 2004, no. December, p.6–9.

DOI: 10.1109/icarcv.2004.1468822

[4] R. J. Kuo, Intelligent robotic die polishing system through fuzzy neural networks and multi-sensor fusion, in Proceedings of 1993 International Conference on Neural Networks (IJCNN-93-Nagoya, Japan), 1993, vol. 3, p.2925–2928.

DOI: 10.1109/ijcnn.1993.714335

[5] S. J. Go, User-friendly automatic polishing robot system and its remote operation based on network, in ISIE 2001, 2001, p.1435–1440.

DOI: 10.1109/isie.2001.931916

[6] C. -C. Ngan and H. -Y. Tam, A non-contact technique for the on-site inspection of molds and dies polishing, Journal of Materials Processing Technology, vol. 155–156, p.1184–1188, Nov. (2004).

DOI: 10.1016/j.jmatprotec.2004.04.263

[7] C. Guiliang, Z. Ji, Z. Lei, L. Zhixin, and W. Guilian, The optimization of fitting a mobile robot's position and pose to its measured coordinates' data by single vision, in 2008 IEEE International Conference on Industrial Technology, 2008, p.1–5.

DOI: 10.1109/icit.2008.4608358

[8] Z. Ji, Realization ofMobile Robot Trajectory Tracking Control Based on Interpolation, in ISIE 2009, 2009, no. ISlE, p.648–651.

[9] S. Kumanan, C. P. Jesuthanam, and R. Ashok Kumar, Application of multiple regression and adaptive neuro fuzzy inference system for the prediction of surface roughness, The International Journal of Advanced Manufacturing Technology, vol. 35, no. 7–8, p.778–788, Oct. (2006).

DOI: 10.1007/s00170-006-0755-4
