Preparation of Ni-Co Alloy by Electrodeposition

Yusrini Marita; Ridwan Ridwan; Satri Nanda; Nurdin Nurdin

doi:10.4028/www.scientific.net/AMM.525.58

Paper Titles

Research on Controllable Synthesis of Magnesium Carbonate Tri-Hydrate
p.35

Influence of Alloying Element on Corrosion Behavior of Hastelloy C-276 in Supercritical Water
p.40

Self-Propagating High-Temperature Synthesis of Simulated ⁹⁰SrO-Contained Radioactive Graphite in N₂ Atmosphere
p.45

Study on Microcrystalline Chitin Cinnamon Nanoemulsion
p.53

Preparation of Ni-Co Alloy by Electrodeposition
p.58

Progress of High Purity Magnesium Oxide Preparation
p.62

The Preparation of Ordered Mesoporous Al₂O₃ and its Application in Ni-Based Catalysts for CH₄/CO₂ Reforming
p.66

Research on the Grinding Crack Causes and the Preventive Measures of the Solid Carbide End Milling Cutter
p.73

Influences of Tennis Shoe Sole with Different Materials on Athletes’ Movement
p.77

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vol. 525Preparation of Ni-Co Alloy by Electrodeposition

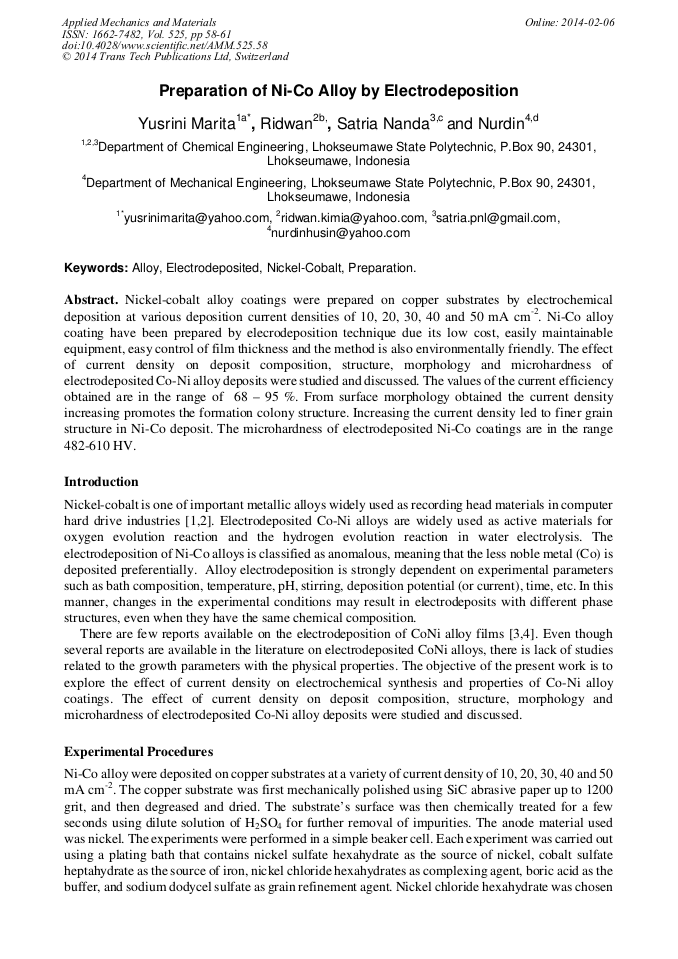

Preparation of Ni-Co Alloy by Electrodeposition

Abstract:

Nickel-cobalt alloy coatings were prepared on copper substrates by electrochemical deposition at various deposition current densities of 10, 20, 30, 40 and 50 mA cm^-2. Ni-Co alloy coating have been prepared by elecrodeposition technique due its low cost, easily maintainable equipment, easy control of film thickness and the method is also environmentally friendly. The effect of current density on deposit composition, structure, morphology and microhardness of electrodeposited Co-Ni alloy deposits were studied and discussed. The values of the current efficiency obtained are in the range of 68 95 %. From surface morphology obtained the current density increasing promotes the formation colony structure. Increasing the current density led to finer grain structure in Ni-Co deposit. The microhardness of electrodeposited Ni-Co coatings are in the range 482-610 HV.
