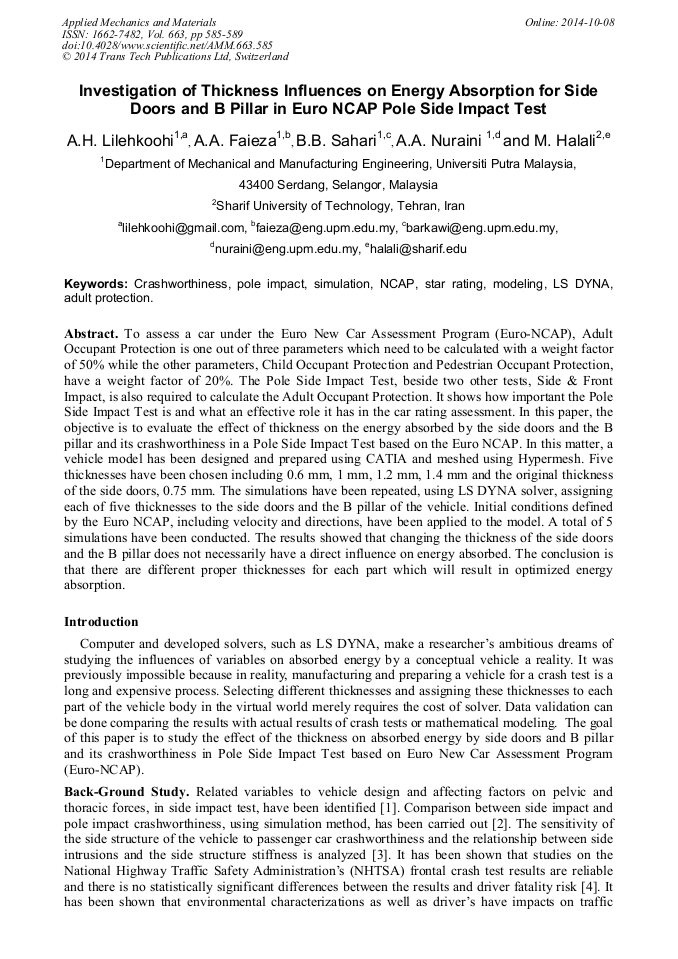

Investigation of Thickness Influences on Energy Absorption for Side Doors and B Pillar in Euro NCAP Pole Side Impact Test

Abstract:

To assess a car under the Euro New Car Assessment Program (Euro-NCAP), Adult Occupant Protection is one out of three parameters which need to be calculated with a weight factor of 50% while the other parameters, Child Occupant Protection and Pedestrian Occupant Protection, have a weight factor of 20%. The Pole Side Impact Test, beside two other tests, Side & Front Impact, is also required to calculate the Adult Occupant Protection. It shows how important the Pole Side Impact Test is and what an effective role it has in the car rating assessment. In this paper, the objective is to evaluate the effect of thickness on the energy absorbed by the side doors and the B pillar and its crashworthiness in a Pole Side Impact Test based on the Euro NCAP. In this matter, a vehicle model has been designed and prepared using CATIA and meshed using Hypermesh. Five thicknesses have been chosen including 0.6 mm, 1 mm, 1.2 mm, 1.4 mm and the original thickness of the side doors, 0.75 mm. The simulations have been repeated, using LS DYNA solver, assigning each of five thicknesses to the side doors and the B pillar of the vehicle. Initial conditions defined by the Euro NCAP, including velocity and directions, have been applied to the model. A total of 5 simulations have been conducted. The results showed that changing the thickness of the side doors and the B pillar does not necessarily have a direct influence on energy absorbed. The conclusion is that there are different proper thicknesses for each part which will result in optimized energy absorption.

• Periodical: Applied Mechanics and Materials (Volume 663)
• Pages: 585-589
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.663.585
• Online since: October 2014
• Authors: A.H. Lilehkoohi*, A.A. Faieza, B.B. Sahari, A.A. Nuraini, M. Halali
• Keywords: Adult Protection, Crashworthiness, LS-DYNA, Modeling, NCAP, Pole Impact, Simulation, Star Rating

References

[1] A.F. Tencer, R. Kaufman, C. Mack, C. Mock, Factors Affecting pelvic and thoracic forces in near-side impact crashes: A study of US-NCAP, NASS, and CIREN Data, Accident Analysis and Prevention. 37 (2005) 287-293.

DOI: 10.1016/j.aap.2004.09.005

[2] D. Wang, G. Dong, J. Zhang, S. Huang, Car side structure crashworthiness in pole and moving deformable barrier side impacts, Tsinghua Science and Technology. 11 (2006) 725-730.

DOI: 10.1016/s1007-0214(06)70256-5

[3] G. Dong, D. Wang, J. Zhang, S. Huang, Side structure sensitivity to passenger car crashworthiness during pole side impact, Tsinghua Science and Technology. 12 (2007) 290-295.

DOI: 10.1016/s1007-0214(07)70043-3

[4] D.W. Harless, G.E. Hoffer, Do laboratory frontal crash test programs predict driver fatality risk? evidence from within vehicle line variation in test ratings, Accident Analysis and Prevention. 39 (2007) 902-913.

DOI: 10.1016/j.aap.2006.12.012

[5] S. Boufous, C. Finch, A. Hayen, A. Williamson, The impact of environmental, vehicle and driver characteristics on injury severity in older drivers hospitalized as a result of a traffic crash, Journal of Safety Research. 39 (2008) 65-72.

DOI: 10.1016/j.jsr.2007.10.010

[6] Z. Salipur, G. Bertocci, Development and validation of rear impact computer simulation model of an adult manual transit wheelchair with a seated occupant, Medical Engineering and Physics. 32 (2010) 66-75.

DOI: 10.1016/j.medengphy.2009.10.009

[7] X. Cui, H. Zhang, S. Wang, L. Zhang, J. Ko, Design of lightweight multi-material automotive bodies using new material performance indices of thin-walled beams for the material selection with crashworthiness consideration, Materials and Design. 32 (2011).

DOI: 10.1016/j.matdes.2010.07.018

[8] S. Patil, S.R. Geedipally, D. Lord, Analysis of crash severities using nested logit model-accounting for the underreporting of crashes, Accident Analysis and Prevention. 45 (2012) 646-653.

DOI: 10.1016/j.aap.2011.09.034

[9] A.H. Lilehkoohi, A.A. Faieza, B.B. Sahari, A.A. Nuraini, M. Halali, Effect of material on crashworthiness for side doors and B pillar subjected to Euro NCAP side impact crash test, Advanced Science Letters. 19 (2013) 359-362.

DOI: 10.1166/asl.2013.4749

[10] A.H. Lilehkoohi, A.A. Faieza, B.B. Sahari, A.A. Nuraini, M. Halali, Crashworthiness determination for front and rear doors and B pillar subjected to side impact crash by a mobile deformable barrier, Advanced Science Letters. 19 (2013) 392-39.

DOI: 10.1166/asl.2013.4748

[11] Pole Side Impact Testing Protocol, Version 5. 1, EuroNCAP, 2011. http: /www. euroncap. com/files/Euro-NCAP-Pole-Protocol-Version-5. 1.
