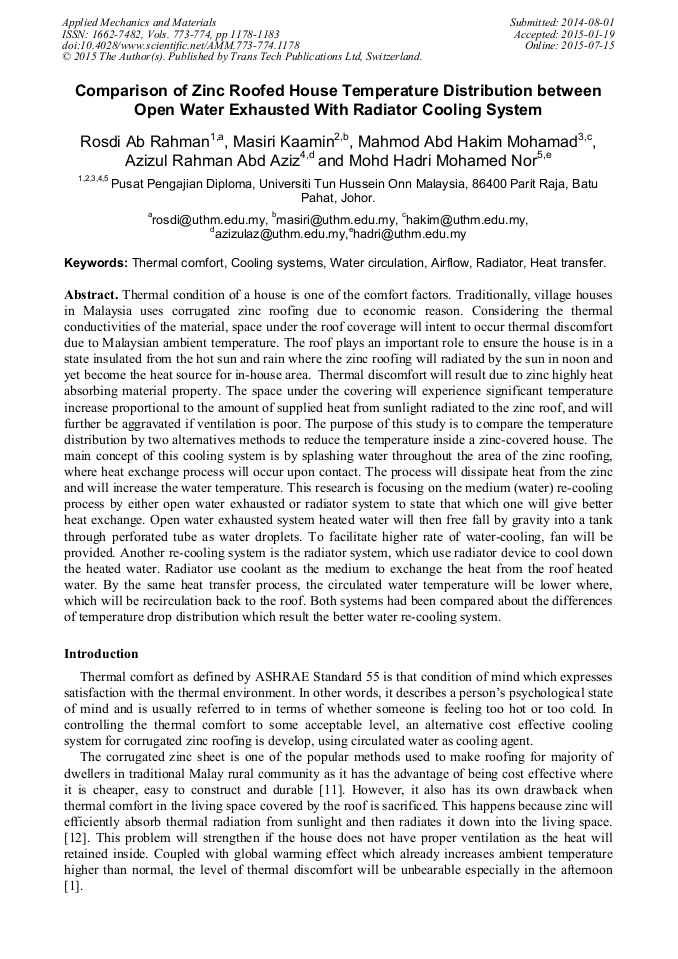

Comparison of Zinc Roofed House Temperature Distribution between Open Water Exhausted with Radiator Cooling System

Abstract:

Thermal condition of a house is one of the comfort factors. Traditionally, village houses in Malaysia uses corrugated zinc roofing due to economic reason. Considering the thermal conductivities of the material, space under the roof coverage will intent to occur thermal discomfort due to Malaysian ambient temperature. The roof plays an important role to ensure the house is in a state insulated from the hot sun and rain where the zinc roofing will radiated by the sun in noon and yet become the heat source for in-house area. Thermal discomfort will result due to zinc highly heat absorbing material property. The space under the covering will experience significant temperature increase proportional to the amount of supplied heat from sunlight radiated to the zinc roof, and will further be aggravated if ventilation is poor. The purpose of this study is to compare the temperature distribution by two alternatives methods to reduce the temperature inside a zinc-covered house. The main concept of this cooling system is by splashing water throughout the area of the zinc roofing, where heat exchange process will occur upon contact. The process will dissipate heat from the zinc and will increase the water temperature. This research is focusing on the medium (water) re-cooling process by either open water exhausted or radiator system to state that which one will give better heat exchange. Open water exhausted system heated water will then free fall by gravity into a tank through perforated tube as water droplets. To facilitate higher rate of water-cooling, fan will be provided. Another re-cooling system is the radiator system, which use radiator device to cool down the heated water. Radiator use coolant as the medium to exchange the heat from the roof heated water. By the same heat transfer process, the circulated water temperature will be lower where, which will be recirculation back to the roof. Both systems had been compared about the differences of temperature drop distribution which result the better water re-cooling system.

• Periodical: Applied Mechanics and Materials (Volumes 773-774)
• Pages: 1178-1183
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.773-774.1178
• Online since: July 2015
• Authors: Rosdi Ab Rahman*, Masiri Kaamin, Mahmod Abd Hakim Mohamad, Azizul Rahman Abd Aziz, Mohd Hadri Mohamed Nor
• Keywords: Airflow, Cooling Systems, Heat Transfer, Radiator, Thermal Comfort, Water Circulation

References

[1] Ariff M. M. (2008). Pemanasan Global Menangani Amarah Alam,. retrieved August 2013 from http: /www. savesandakan. com/pemanasan-global-menangani-amarah-alam/).

[2] Mohd Yunus N. Z. (2007). Kajian Keberkesanan Saiz Tangki OSD Sebagai Sumber Guna Semula Air Hujan. Tesis Sarjana Muda, Universiti Teknologi Malaysia.

[3] Syarif Hidayat (2005) . Kajian Tentang Atap Dan Implikasinya Terhadap Keadaan Termal Rumah Sederhana Pada Iklim Panas Lembap Malaysia. Tesis Sarjana Muda, Universiti Teknologi Malaysia.

[4] Azan M. K (2007). Kegagalan Struktur Bumbung Disebabkan Oleh Beban Angin. Tesis Sarjana Muda. Universiti Teknologi Malaysia.

[5] Muhamad Azraai A. H (2007) Rekabentuk Kipas Penyejuk. Tesis Sarjana Muda. Universiti Teknikal Malaysia Melaka.

[6] Wan Mokhtar W. A. (2006) . Ramalan Aliran Haba Dan Jisim Melalui Satu Kipas Penukar Haba Menggunakan Pemodelan CFD. Tesis Sarjana Muda. Universiti Teknikal Malaysia Melaka.

[7] Amirulnizam A. (2007). Kajian Ke Atas Prestasi Sistem Penyejukan Enjin . Tesis Sarjana Muda, Universiti Teknikal Malaysia Melaka.

[8] A. Stamou, and I Katsiris (2006). Verification of a CFD model for indoor airflow and heat transfer, Building and Environment, Vol 41, , pp.1171-1181.

DOI: 10.1016/j.buildenv.2005.06.029

[9] J. F. Nicol, and M. A. Humphreys (2002), Adaptive thermal comfort and sustainable thermal standards for buildings, Energy and Buildings, Vol 34, pp.5563-572.

DOI: 10.1016/s0378-7788(02)00006-3

[10] Trost, J. (1999). Heating, ventilating, and air conditioning (11 ed. ). USA: Prentice. Hall.

[11] Mahmod Abd Hakim Mohamad, Masiri Kaamin, Azizul Rahman Abd Aziz, Rosdi Ab Rahman, Amir Khan Suwandi and Mohd Jahaya Kesot (2014).

DOI: 10.37934/aram.94.1.16

[12] Rosdi Ab Rahman, Masiri Kaamin, Amir Khan Suwandi, Mohd Jahaya Kesot and Norah Mohd Zan (2014). Cooling System of Zinc Roofed House by Using Circulated Water. Advanced Materials Research Vol. 935, pp.84-87.

DOI: 10.4028/www.scientific.net/amr.935.84
