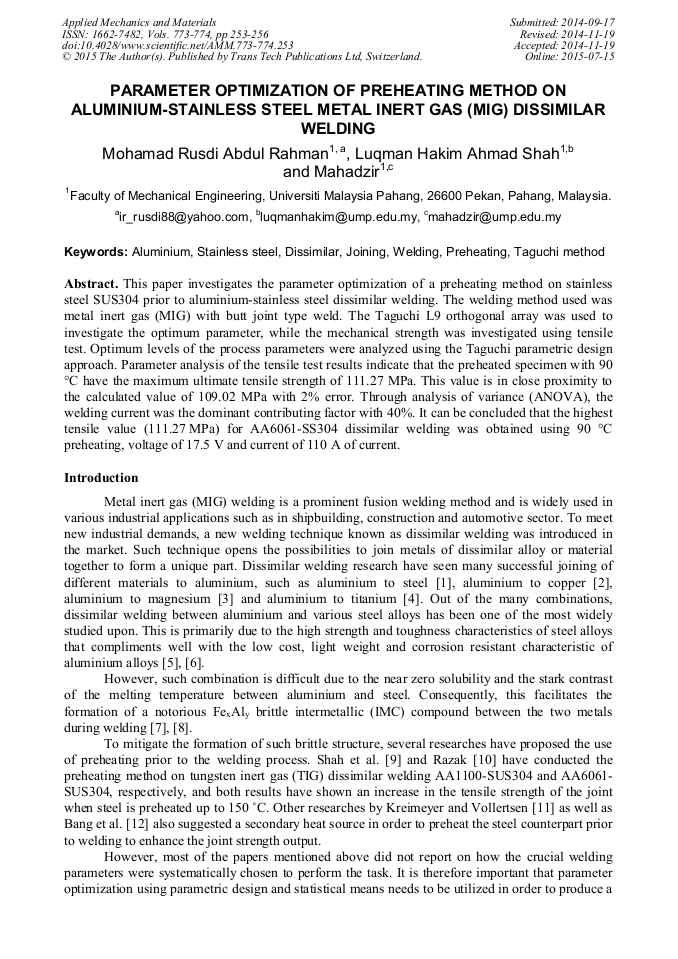

Parameter Optimization of Preheating Method on Aluminium-Stainless Steel Metal Inert Gas (MIG) Dissimilar Welding

Abstract:

This paper investigates the parameter optimization of a preheating method on stainless steel SUS304 prior to aluminium-stainless steel dissimilar welding. The welding method used was metal inert gas (MIG) with butt joint type weld. The Taguchi L9 orthogonal array was used to investigate the optimum parameter, while the mechanical strength was investigated using tensile test. Optimum levels of the process parameters were analyzed using the Taguchi parametric design approach. Parameter analysis of the tensile test results indicate that the preheated specimen with 90 °C have the maximum ultimate tensile strength of 111.27 MPa. This value is in close proximity to the calculated value of 109.02 MPa with 2% error. Through analysis of variance (ANOVA), the welding current was the dominant contributing factor with 40%. It can be concluded that the highest tensile value (111.27 MPa) for AA6061-SS304 dissimilar welding was obtained using 90 °C preheating, voltage of 17.5 V and current of 110 A of current.

References

[1] M. J. Rathod, M. Kutsuna, Joining of Aluminum Alloy 5052 and Low-Carbon Steel by Laser Roll Welding, J. Weld. 83 (2004) 16–26.

[2] T. Saeid, a. Abdollah-zadeh, B. Sazgari, Weldability and mechanical properties of dissimilar aluminum–copper lap joints made by friction stir welding, J. Alloys Compd. 490 (2010) 652–655.

DOI: 10.1016/j.jallcom.2009.10.127

[3] Y. J. Kwon, I. Shigematsu, N. Saito, Dissimilar friction stir welding between magnesium and aluminum alloys, Mater. Lett. 62 (2008) 3827–3829.

DOI: 10.1016/j.matlet.2008.04.080

[4] U. Dressler, G. Biallas, U. Alfaro Mercado, Friction stir welding of titanium alloy TiAl6V4 to aluminium alloy AA2024-T3, Mater. Sci. Eng. A 526 (2009) 113–117.

DOI: 10.1016/j.msea.2009.07.006

[5] S. Fukumoto, H. Tsubakino, K. Okita, M. Aritoshi, T. Tomita, Amorphization by friction welding between 5052 aluminum alloy and 304 stainless steel, Scr. Mater. 42 (2000) 807–812.

DOI: 10.1016/s1359-6462(00)00299-2

[6] M. Staubach, S. Juttner, U. Fussel, M. Dietrich, Joining of steel-aluminium mixed joints with energy-reduced GMA processes and filler materials on an aluminium and zinc basis, Weld. Cut. 7 (2008) 30–38.

[7] C. Dharmendra, K. P. Rao, J. Wilden, S. Reich, Study on laser welding–brazing of zinc coated steel to aluminum alloy with a zinc based filler, Mater. Sci. Eng. A 528 (2011) 1497–1503.

DOI: 10.1016/j.msea.2010.10.050

[8] R. Qiu, C. Iwamoto, S. Satonaka, The influence of reaction layer on the strength of aluminum/steel joint welded by resistance spot welding, Mater. Charact. 60 (2009) 156–159.

DOI: 10.1016/j.matchar.2008.07.005

[9] L. H. Shah, A. S. M. Yusof, M. Ishak, Investigation of heat treatment on weld joint quality of stainless steel and aluminium dissimilar welding, Proceedings of the 16th International Conference on Advances in Materials & Processing Technologies (AMPT'14) (2013).

[10] M. N. A. Razak, Investigation of heat treatment (preheat) of steel on aluminium-steel welding, Degree thesis, Universiti Malaysia Pahang (2013).

[11] M. Kreimeyer, F. Vollertsen, Gap tolerant joining of aluminium with steel sheets using the hybrid technique, Proceedings of International Congress on Applications of Lasers and Electro-Optics 2006 (ICALEO'06) (2006) 947–952.

DOI: 10.2351/1.5060796

[12] H. Bang, H. Bang, G. Jeon, I. Oh, C. Ro, Gas tungsten arc welding assisted hybrid friction stir welding of dissimilar materials Al6061-T6 aluminum alloy and STS304 stainless steel, Mater. Des. 37 (2012) 48–55.

DOI: 10.1016/j.matdes.2011.12.018

[13] D. C. Montgomery, Design and Analysis of Experiments, forth ed. John Wiley & Sons, New York, (2006).

[14] A. K. Lakshminarayanan, V. Balasubramanian, Process parameters optimization for friction stir welding of RDE-40 aluminium alloy using Taguchi technique, 18 (2007) 2–8.

DOI: 10.1016/s1003-6326(08)60096-5

[15] P.J. Ross, Taguchi techniques for quality engineering, second ed., McGraw Hill Professional, New York, (1996).
