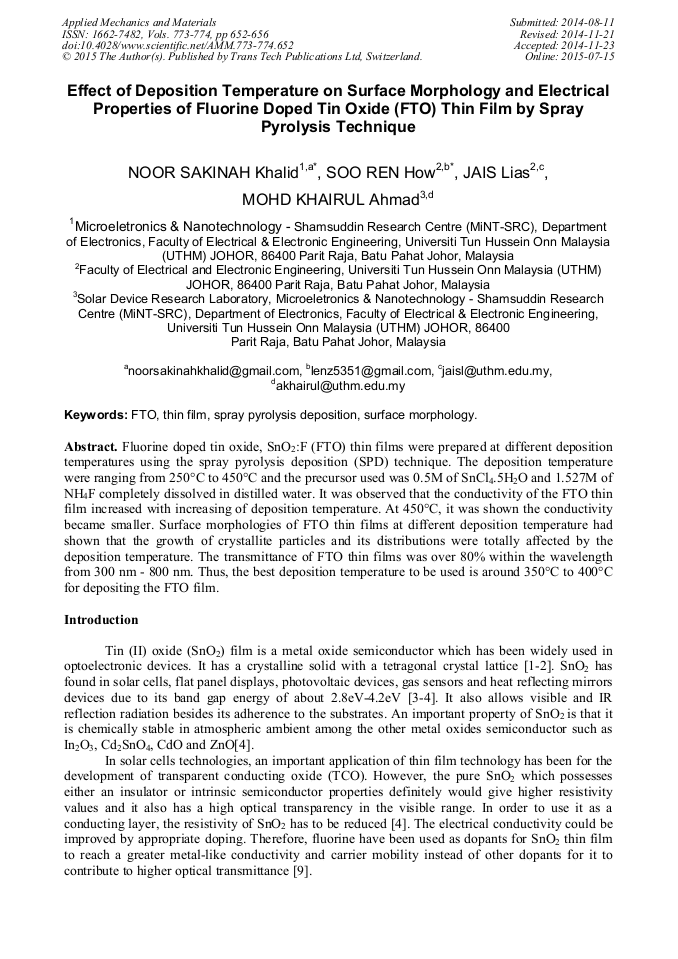

Effect of Deposition Temperature on Surface Morphology and Electrical Properties of Fluorine Doped Tin Oxide (FTO) Thin Film by Spray Pyrolysis Technique

Abstract:

Fluorine doped tin oxide (FTO) thin films were prepared at different deposition temperatures using the spray pyrolysis deposition (SPD) technique. The deposition temperature were ranging from 250°C °C to 450°C and the precursor used was 0.5M of SnCl₄.5H₂O and 1.527M of NH₄F completely dissolved in distilled water. It was observed that the conductivity of the FTO thin film increased with increasing of deposition temperature. At 450°C, it was shown the conductivity became smaller. Surface morphologies of FTO thin films at different deposition temperature had shown that the growth of crystallite particles and its distributions were totally affected by the deposition temperature. The transmittance of FTO thin films was over 80% within the wavelength from 300 nm - 800 nm. Thus, the best deposition temperature to be used is around 350°C to 400°C for depositing the FTO film.

By email View Pdf

You have full access to the following eBook

International Integrated Engineering Summit 2014

Read eBook

Info:

Periodical:

Applied Mechanics and Materials (Volumes 773-774)

Pages:

652-656

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.773-774.652

Citation:

Cite this paper

Online since:

July 2015

Authors:

Noor Sakinah Khalid*, Soo Ren How, Jais Lias, Mohd Khairul bin Ahmad

Keywords:

FTO, Spray Pyrolysis Deposition, Surface Morphology, Thin Film

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Citation:

* - Corresponding Author

References

[1] S. J Ikhmayies, R.N. Ahmad-Bitar. Effect of Processing on the Electrical Properties of Spray-Deposited SnO2: F Thin Films. Am. J. Applied Sci. 5 (2008) 672-677.

DOI: 10.3844/ajassp.2008.672.677

Google Scholar

[2] A. Chitra, R. B. Matathe, G.M. Takwale and G.V. Bhide. Structural properties of SnO2: F films deposited by spray pyrolysis technique. Thin Solid Films. 164 (1998) 261-264.

DOI: 10.1016/0040-6090(88)90146-0

Google Scholar

[3] V. Bilgin, I. Akyuz, E. Ketenci, S. Kose, F. Atay, Electrical, structural and surface properties of fluorine doped tin oxide films, Applied Surface Science. 256 (2010) 6585-6591.

DOI: 10.1016/j.apsusc.2010.04.052

Google Scholar

[4] K. Subba Ramaiah, V. Sundara Raja, Structural and electrical properties of fluorine doped tin oxide films prepared by spray-pyrolysis technique, Applied Surface Science, 253 (2006) 1451-1458.

DOI: 10.1016/j.apsusc.2006.02.019

Google Scholar

[5] D. Tatar, G. Turgut and B. Duzcun, Effect of substrate temperature on the crystal growth orientation and some physical properties of SnO2: F thin films deposited by spray pyrolysis technique, Rom. Journ, Phys. (2013) 143-158.

Google Scholar

[6] A.A. Yadav, E.U. Masumdar, A.V. Moholkar, K.Y. Rajpure, C.H. Bhosale, Effect of quantity of spraying solution on the properties of spray deposited fluorine doped tin oxide thin films, Physica B: Condensed Matter. 404 (2009) 1874-1877.

DOI: 10.1016/j.physb.2009.03.006

Google Scholar

[7] H. Cachet, J. Bruneaux, G. Folcher, C. Levy-Clement, C. Vard, M. N. Spallart, Films and powder of fluorine doped tin oxide, in: T. Nakajima, H. Groult (Eds. ), Fluorinated materials for energy conversion, Elsevier Ltd., 2005, pp.507-534.

DOI: 10.1016/b978-008044472-7/50050-3

Google Scholar

[8] A.V. Moholkar, S.M. Pawar, K.Y. Rajpure, C. H. Bhosale, Effect of concentration of SnCl4 on sprayed fluorine doped tin oxide thin films, Journal of Alloys and Compounds. 455 (2008) 440-446.

DOI: 10.1016/j.jallcom.2007.01.160

Google Scholar

[9] E. Elangovan, K. Ramamurthi, Studies on micro-structural and electrical properties of spray-deposited fluorine-doped tin oxide thin films from low cost precursor, Thin Solid Films. 476 (2004) 231-236.

DOI: 10.1016/j.tsf.2004.09.022

Google Scholar

[10] E. Premalal, N. Dematage, S. Kaneko, A. Konno, Preparation of high quality spray-deposited fluorine-doped tin oxide thin films using dilute di(n-butyl)tin(iv) diacetate precursor solutions, Thin Solid Films. 520 (2012) 6813-6817.

DOI: 10.1016/j.tsf.2012.06.068

Google Scholar

[11] L. Chin-Ching, C. Mei-Ching, C. Yu-Wei, Temperature dependence of fluorine-doped tin oxide films produced by ultrasonic spray pyrolysis, Thin Solid Films. 518 (2009) 1241-1244.

DOI: 10.1016/j.tsf.2009.05.064

Google Scholar
