Direct Modelling CAD Technology Comparative Review in Efficiency and Productivity for Product Development Process

Abstract:

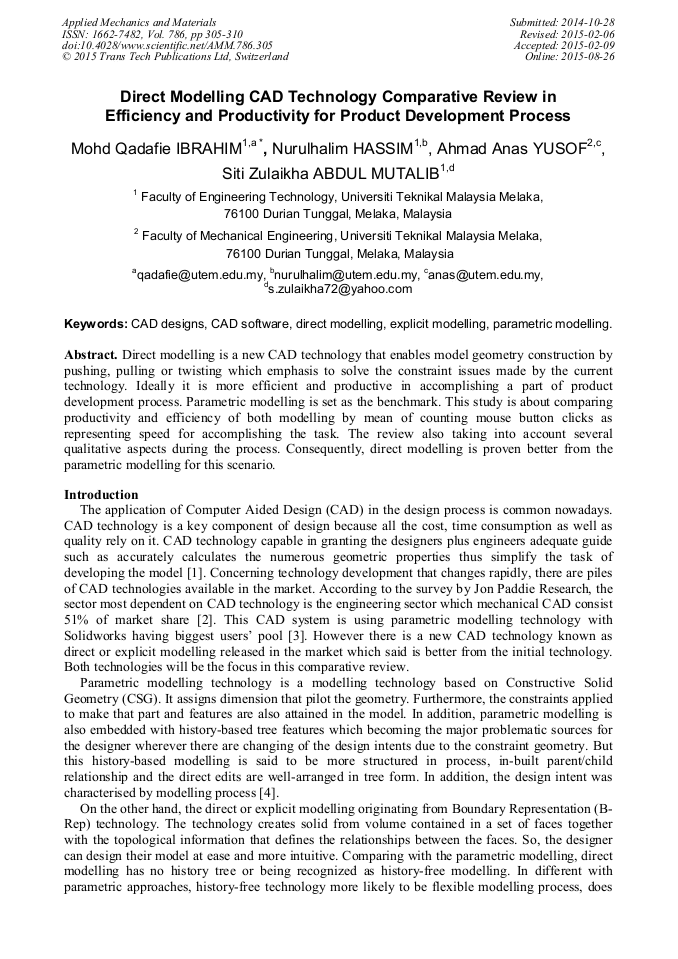

Direct modelling is a new CAD technology that enables model geometry construction by pushing, pulling or twisting which emphasis to solve the constraint issues made by the current technology. Ideally it is more efficient and productive in accomplishing a part of product design process. This study is about comparing productivity and efficiency of both modelling by mean of counting mouse button clicks as representing speed for accomplishing the task. Parametric modelling is set as the benchmark. The review also taking into account several qualitative aspects during the process. Accordingly, direct modelling is proven better from the parametric modelling for this scenario.

You might also be interested in these eBooks

Trends and Applications in Mechanical Engineering

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 786)

Pages:

305-310

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.786.305

Citation:

Cite this paper

Online since:

August 2015

Authors:

Mohd Qadafie Ibrahim, Nurulhalim Hassim, Ahmad Anas Yusof, Siti Zulaikha Abdul Mutalib

Keywords:

CAD Designs, CAD Software, Direct Modelling, Explicit Modelling, Parametric Modelling
