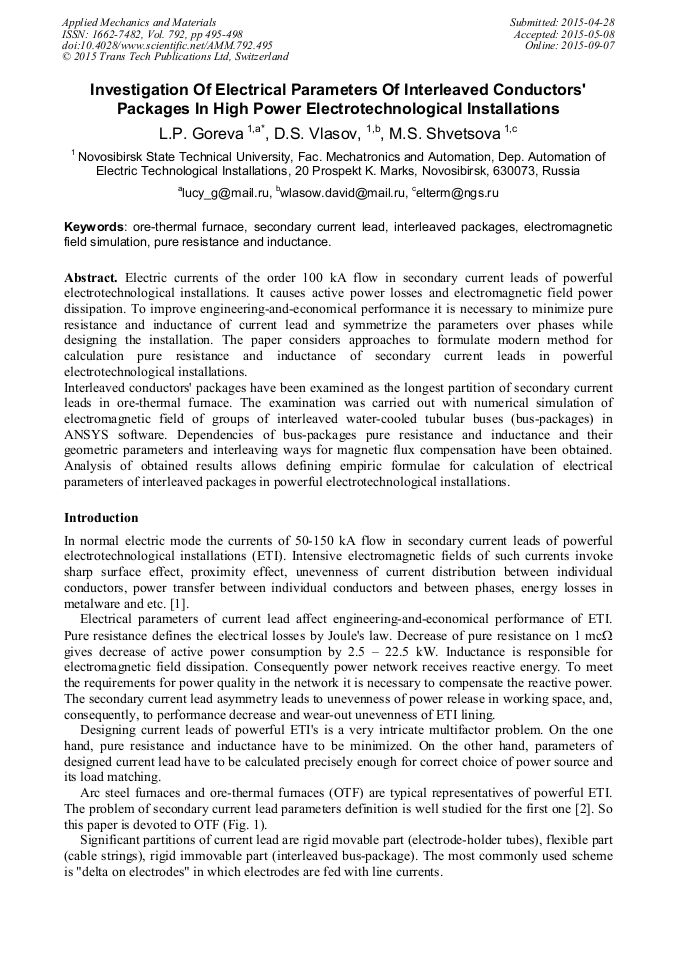

Investigation of Electrical Parameters of Interleaved Conductors' Packages in High Power Electrotechnological Installations

Abstract:

Electric currents of the order 100 kA flow in secondary current leads of powerful electrotechnological installations. It causes active power losses and electromagnetic field power dissipation. To improve engineering-and-economical performance it is necessary to minimize pure resistance and inductance of current lead and symmetrize the parameters over phases while designing the installation. The paper considers approaches to formulate modern method for calculation pure resistance and inductance of secondary current leads in powerful electrotechnological installations.Interleaved conductors' packages have been examined as the longest partition of secondary current leads in ore-thermal furnace. The examination was carried out with numerical simulation of electromagnetic field of groups of interleaved water-cooled tubular buses (bus-packages) in ANSYS software. Dependencies of bus-packages pure resistance and inductance and their geometric parameters and interleaving ways for magnetic flux compensation have been obtained. Analysis of obtained results allows defining empiric formulae for calculation of electrical parameters of interleaved packages in powerful electrotechnological installations.
