Electrical Generation of Dye-Sensitized Solar Cells Using Sensitizer from Rose Flower

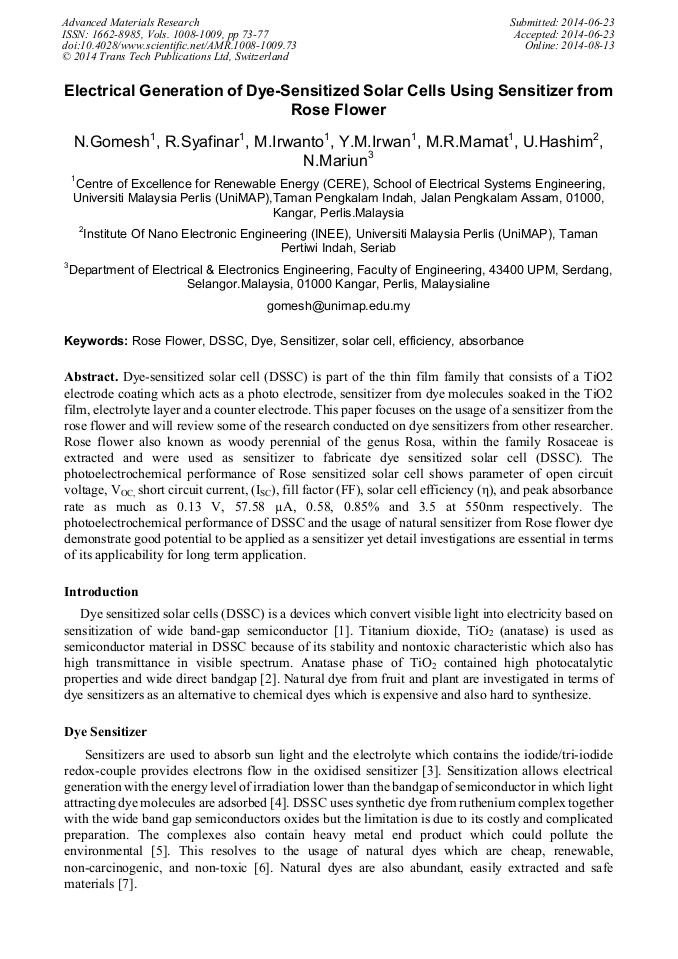

Article Preview

Abstract:

Dye-sensitized solar cell (DSSC) is part of the thin film family that consists of a TiO2 electrode coating which acts as a photo electrode, sensitizer from dye molecules soaked in the TiO2 film, electrolyte layer and a counter electrode. This paper focuses on the usage of a sensitizer from the rose flower and will review some of the research conducted on dye sensitizers from other researcher. Rose flower also known as woody perennial of the genus Rosa, within the family Rosaceae is extracted and were used as sensitizer to fabricate dye sensitized solar cell (DSSC). The photoelectrochemical performance of Rose sensitized solar cell shows parameter of open circuit voltage, V_OC,short circuit current, (I_SC), fill factor (FF), solar cell efficiency (η), and peak absorbance rate as much as 0.13 V, 57.58 µA, 0.58, 0.85% and 3.5 at 550nm respectively. The photoelectrochemical performance of DSSC and the usage of natural sensitizer from Rose flower dye demonstrate good potential to be applied as a sensitizer yet detail investigations are essential in terms of its applicability for long term application.

You might also be interested in these eBooks

Applied Power and Energy Technology II

Info:

Periodical:

Advanced Materials Research (Volumes 1008-1009)

Pages:

73-77

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1008-1009.73

Citation:

Cite this paper

Online since:

August 2014

Authors:

Nair Gomesh*, Syafinar Ramli, M. Irwanto, Y. M. Irwan, M. R. Mamat, U. Hashim, N. Mariun

Keywords:

Absorbance, DSSC, Dye, Efficiency, Rose Flower, Sensitizer, Solar Cell

Export:

RIS, BibTeX

Price:

Permissions:

Request Permissions

* - Corresponding Author

[1] G. Calogero, J-H. Yum, A. Sinopoli, G. D. Marco, M. Gratzel and M. K. Nazeeruddin, Anthocyanins and betalains as light-harvesting pigments for dye-sensitized solar cells, Solar Energy 86 (2012) 1563-1575.

DOI: 10.1016/j.solener.2012.02.018

[2] J. K. Tsai, W. D. Hsu, T. C. Wu, T. H. Meen and W. J. Chong, Effects of compressed TiO2 nanoparticle thin film thickness on the performance of dye-sensitized solar cells, Nanoscale Research Letters 2013, 8: 459.

DOI: 10.1186/1556-276x-8-459

[3] C. G. Garcia, A. S. Polo, N. Y. M. Iha, Fruit extracts and ruthenium polypyridinic dyes for sensitization of TiO2 in photolectrochemicals solar cells, Journal of Photochemistry and Photobiology A: Chemistry 160 (2003) 87-91.

DOI: 10.1016/s1010-6030(03)00225-9

[4] K. Wongcharee, V. Meeyoo and S. Chavadej, Dye-sensitized solar cell using natural Extracted from rosella and blue pea flowers, Solar Energy Materials & Solar Cells 91 (2007) 566-571.

DOI: 10.1016/j.solmat.2006.11.005

[5] K. Sinha, P. D. Saha and S. Datta, Extraction of natural dye from petals of Flame of forest (Butea monosperma) flower: Process optimization using response surface methodology (RSM), Dyes and Pigments 94 (2012) 212-216.

DOI: 10.1016/j.dyepig.2012.01.008

[6] M.R. Mohammadi, R.R.M. Louca, D.J. Fray and M.E. Welland, Dye-sensitized solar cells based on a single layer deposition of TiO2 from a new formulation paste and their photovoltaic performance, Solar Energy 86 (2012) 2654–2664.

DOI: 10.1016/j.solener.2012.06.005

[7] J. Wu et al., Progress on the electrolytes for dye-sensitized solar cells, Pure Appl. Chem., Vol. 80, No. 11, p.2241–2258, (2008).

[8] H. Chang, Y. J. Lo, Pomegranate leaves and mulberry fruit as natural sensitizers for dye-sensitized solar cells, Solar Energy 84 (2010) 1833-1837.

DOI: 10.1016/j.solener.2010.07.009

[9] N.T.R.N. Kumara et al., Layered co-sensitization for enhancement of conversion efficiency of natural dye sensitized solar cells, Journal of Alloys and Compounds 581 (2013) 186–191.

DOI: 10.1016/j.jallcom.2013.07.039

[10] M. S. Abdel-Latif, T. M. El-Agez, S. A. Taya, A. Y. Batniji and H. S. El-Ghamri, PlantSeeds-Based Dye-Sensitized Solar Cells, Materials Sciences and Applications, 2013, 4, 516-520.

DOI: 10.4236/msa.2013.49063

[11] H. Chang, H.M. Wu, T.L. Chen, K.D. Huang, C.S. Jwo and Y. J Lo, Dye-sensitized solar cell using natural dyes extracted from spinach and ipomea, Jounal of Alloys and Compounds 495 (2010) 606-610.

DOI: 10.1016/j.jallcom.2009.10.057

[12] E. M. Jin, Kyung-Hee Park, B. Jin, Je-Jung Yun and Hal-Bon Gu, Photosensitization of nanoporous TiO2 films with natural dye, Phys. Scr. T139 (2010) 014006 (5pp).

DOI: 10.1088/0031-8949/2010/t139/014006

[13] H. Chang, Mu-Jung Kao, Tien-Li Chen, Chih-Hao Chen, Kun-Ching Cho and Xuan-Rong Lai, Characterization of Natural Dye Extracted from Wormwood and Purple Cabbage for Dye-Sensitized Solar Cells, International Journal of Photoenergy Volume 2013, Article ID 159502, 8 pages.

DOI: 10.1155/2013/159502

[14] A. I. Babatunde, M.O. John, C. Isanbor and M.A. Olopade, The Development of Eco-friendly Photoelectrochemical solar cell Using Extract of Lonchocarpus cyanescens as a Natural Sensitizer, Advanced in Applied Science Research, 2012, 3(5): 3230-3232.

[15] S. Tekerek, A. Kudret and U. Alver, Dye-sensitized solar cells fabricated with black raspberry, black carrot and rosella juice, Indian J. Phys. Vol. 85, No. 10, pp.1469-1476, October, (2011).

DOI: 10.1007/s12648-011-0166-8

[16] M. Tripathi, R. Upadhyay and A. Pandey, Natural dye-based photoelectrode for improvement of solar cell performance, Ionics (2013) 19: 1179-1183.

DOI: 10.1007/s11581-012-0833-6

[17] G. Calogero et al., Efficient Dye Sensitized Solar Cells Using Red Turnip and Purple Wild Sicilian Prickly Pear Fruits, Int. J. Mol. Sci. 11 (2010) 254-267.

DOI: 10.3390/ijms11010254

[18] A. R. Hernandez- Martinez, M. Estevez, S. Vargas, F. Quintanilla and R. Rodriguez, New Dye-Sensitized Solar Cells Obtained from Extracted Bracts of Bougainvillea and Spectabilis Betalain Pigments by Different Purification Processes, Int. J. Mol. Sci. 2011, 12, 5565-5576.

DOI: 10.3390/ijms12095565

[19] B. K. S. Perera, C. N Nupearachchi and V. P. S. Perera, Utilization of a Natural Pigments Extracted from Nilkatarolu Flowers as a sensitizer in Photoelectrochemical Solar Cells, Proceedings of the Technical Sessions, 27 (2011) 37-41.

[20] M. I. Kimpa, M. Momoh, K. U. Isah, H. N. Yahya and M. M. Ndamitso, Photoelectric Characterization of Dye Sensitized Solar Cells Using Natural Dye from Pawpaw Leaf and Flame Tree Flower as Sensitizers, Materials Science and Applications 3 (2012).

DOI: 10.4236/msa.2012.35041

[21] Hee-Je Kim et al., Curcumin Dye Extracted from Curcuma longa L. Used as Sensitizers for Efficient Dye-Sensitized Solar Cells, Int. J. Electrochem. Sci. 8 (2013) 8320-8328.

[22] M. S. Roy, P. Balraju, M. Kumar and G.D. Sharma, Dye-sensitized solar cell based on Rose Bengal dye and nanocrystalline , Solar Energy Materials & Solar Cells 92 (2008) 909-913.

DOI: 10.1016/j.solmat.2008.02.022

[23] G.R. A Kumara, S. Kaneko, M. Okuya, B. Onwona-Agyeman, A. Konno and K. Tennakone, Shiso leaf pigments for dye-sensitized solid-state solar cell, Solar Energy Materials & Solar Cells 90 (2006) 1220-1226.

DOI: 10.1016/j.solmat.2005.07.007

[24] K.V. Hemalatha, S.N. Karthick, C. Justin Raj, N, -Y. Hong, S. -K. Kim and H. -J. Kim, Performance of Kerria japonica and Rosa chinensis flower dyes as sensitizers for dye- sensitized solar cells, Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy 96 (2012).

DOI: 10.1016/j.saa.2012.05.027

[25] N. Gomesh, R. Syafinar, M. Irwanto, Y.M. Yusoff, U. hashim, N. Mariun, Solar cell using sensitizer extracted from organic substances, 2014 IEEE 8th International Power Engineering and Optimization Conference (PEOCO 2014), pp.543-545.

DOI: 10.1109/peoco.2014.6814488
