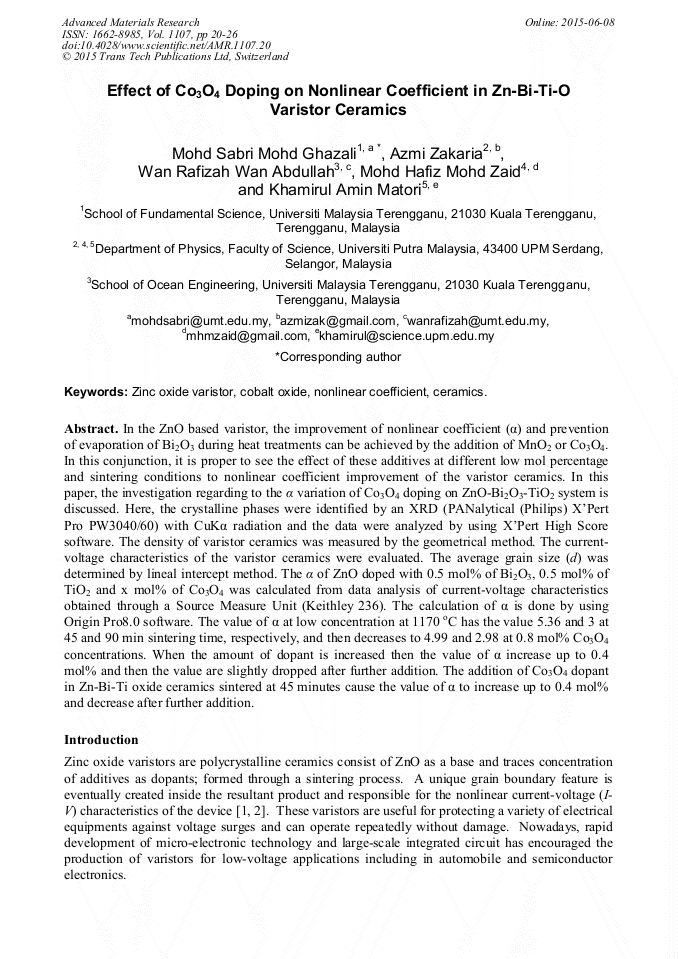

Effect of Co₃O₄ Doping on Nonlinear Coefficient in Zn-Bi-Ti-O Varistor Ceramics

Abstract:

In the ZnO based varistor, the improvement of nonlinear coefficient (α) and prevention of evaporation of Bi₂O₃ during heat treatments can be achieved by the addition of MnO₂ or Co₃O₄. In this conjunction, it is proper to see the effect of these additives at different low mol percentage and sintering conditions to nonlinear coefficient improvement of the varistor ceramics. In this paper, the investigation regarding to the α variation of Co₃O₄ doping on ZnO-Bi₂O₃-TiO₂ system is discussed. Here, the crystalline phases were identified by an XRD (PANalytical (Philips) XPert Pro PW3040/60) with CuKα radiation and the data were analyzed by using XPert High Score software. The density of varistor ceramics was measured by the geometrical method. The current-voltage characteristics of the varistor ceramics were evaluated. The average grain size (d) was determined by lineal intercept method. The α of ZnO doped with 0.5 mol% of Bi₂O₃, 0.5 mol% of TiO₂ and x mol% of Co₃O₄ was calculated from data analysis of current-voltage characteristics obtained through a Source Measure Unit (Keithley 236). The calculation of α is done by using Origin Pro8.0 software. The value of α at low concentration at 1170 °C has the value 5.36 and 3 at 45 and 90 min sintering time, respectively, and then decreases to 4.99 and 2.98 at 0.8 mol% Co₃O₄ concentrations. When the amount of dopant is increased then the value of α increase up to 0.4 mol% and then the value are slightly dropped after further addition. The addition of Co₃O₄ dopant in Zn-Bi-Ti oxide ceramics sintered at 45 minutes cause the value of α to increase up to 0.4 mol% and decrease after further addition.

• Periodical: Advanced Materials Research (Volume 1107)
• Pages: 20-26
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1107.20
• Online since: June 2015
• Authors: Mohd Sabri Mohd Ghazali*, Azmi Zakaria, Wan Rafizah Wan Abdullah, Mohd Zaid Mohd Hafiz, Khamirul Amin Matori
• Keywords: Ceramic, Cobalt Oxide, Non-Linear Coefficient, Zinc Oxide Varistor

References

[1] Clarke, D.R. Varistor ceramics, J. Am. Ceram. Soc. 82(3) (1999) 485-502.

[2] Souza, F.L.; Gomez, J.W.; Bueno, P.R.; Cassia-Santos, M.R.; Araujo, A.L.; Leiti, E.R.; Longo, E.; Varela, A.J. Effect of the addition of ZnO seeds on the electrical properties of ZnO-based varistors, Mater. Chem. Phys. 80 (2003) 512-516.

DOI: 10.1016/s0254-0584(03)00083-x

[3] Matsuoka, M. Nonohmic properties of zinc oxide ceramics, Jpn J. Appl. Phy. 10(6) (1971) 736-746.

DOI: 10.1143/jjap.10.736

[4] Snow, G.S.; White, S.S.; Cooper, R.A.; Armijo J.R. Characterization of high field varistors in the system ZnO-CoO-PbO-Bi2O3, Am. Ceram. Soc. Bull. 59(6) (1980) 617-622.

[5] Eda, K. Zinc oxide varistor, IEEE Elect. Insul. Mag. 5 (1989) 28-41.

[6] Bai SN, Shieh JS and Tseng Ty. Characteristic analysis of ZnO varistors made with spherical precipitation powders, Mater. Chem. Phys. 41 (1995) 104-109.

DOI: 10.1016/0254-0584(95)80014-x

[7] Toplan O, Gunay V and Ozkan OT. Grain growth in the MnO added ZnO-6 wt% Sb2O3 ceramic system, Ceram. Int. 23(5) (1997) 251-255.

DOI: 10.1016/s0272-8842(96)00035-1

[8] Fah, C.P.; Wang, J. Effect of high-energy mechanical activation on the microstructure and electrical properties of ZnO-based varistors, Solid State Ionics. 132 (2000) 107-117.

DOI: 10.1016/s0167-2738(00)00671-8

[9] Lauf, R.J.; Bond, W.D. Fabricating of high-field zinc oxide varistors by sol-gel processing, Ceram. Bull. 63(2) (1984) 278-281.

[10] Einzinger, R. Grain junction properties of ZnO varistors, Appl. Surf. Sci. 3 (1979) 390-408.

DOI: 10.1016/0378-5963(79)90008-4

[11] Gupta, T.K. Microstructural engineering through donor and acceptor doping in the grain and grain boundary of a polycrystalline semiconducting ceramic, J. Mater. Res. 7(12) (1992) 3280-3295.

DOI: 10.1557/jmr.1992.3280

[12] Han, J.; Mantas, P.Q.; Senos, A.M.R. Effect of Al and Mn doping on the electrical conductivity of ZnO, J. Eur. Ceram. Soc. 21 (2001) 1883-1884.

[13] Han, J.; Mantas, P.Q.; Senos, A.M.R. Varistor behaviour of Mn-doped ZnO ceramics, J. Eur. Ceram. Soc. 22 (2002) 1653-1660.

DOI: 10.1016/s0955-2219(01)00484-8

[14] Han, J.; Mantas, P.Q.; Senos, A.M.R. Nonisothermal sintering of Mn doped ZnO, J. Eur. Ceram. Soc. 19 (1999) 1003-1006.

DOI: 10.1016/s0955-2219(98)00362-8

[15] Han, J.; Mantas, P.Q.; Senos, A.M.R. Deep donors in polycrystalline Mn-doped ZnO, J. Eur. Ceram. Soc. 75 (2002) 117-120.

DOI: 10.1016/s0254-0584(02)00063-9

[16] Han, J.; Mantas, P.Q.; Senos, A.M.R. Defect chemistry and electrical characteristics of undoped and Mn-doped ZnO, J. Eur. Ceram. Soc. 22 (2002) 49-59.

DOI: 10.1016/s0955-2219(01)00241-2

[17] Look, D.C.; Hemsky, J.W.; Sizelove, J.R. Residual native shallow donor in ZnO, Phys. Rev. Lett. 82 (1999) 2552-2555.

DOI: 10.1103/physrevlett.82.2552

[18] Wang, J.F.; Wen-Bin Su; Hong-Cun Chen; Wen-Xin Wang; Guo-Zhong Zang. (Pr, Co, Nb)-Doped SnO2 Varistor Ceramics, J. Am. Ceram. Soc. 88(2) (2005) 331-334.

DOI: 10.1111/j.1551-2916.2005.00095.x

[19] Wurst, J.C.; Nelson, J.A. Lineal intercept tec-hnique for measuring grain size in two-phase polycrystalline ceramics, J. Am. Ceram. Soc. 55 (1972) 109-111.

DOI: 10.1111/j.1151-2916.1972.tb11224.x

[20] Toyoda, T.; Shimamoto, S. Effect of Bi2O3 in ceramic ZnO on photoacoustic spectra and current voltage characteristics, Jpn. J. Appl. Phys. 37 (1998) 2827-2831.

DOI: 10.1143/jjap.37.2827

[21] Suzuki, H.; Bradt, R.C. Grain growth of ZnO in ZnO-Bi2O3 ceramics with TiO2 additions, J. Am. Ceram. Soc. 78(5) (1995) 1354-1360.

DOI: 10.1111/j.1151-2916.1995.tb08494.x

[22] Sabri, M.G.M.; Azmi, B.Z.; Zahid Rizwan, Halimah, M.K.; Hashim, M.; Sidek H.A.A. Application of direct current and temperature stresses of low-voltage ZnO based varistor ceramics, Am. J. Appl. Sci. 6(8) (2009) 1591-1595.

DOI: 10.3844/ajassp.2009.1591.1595

[23] Sabri, M.G.M.; Azmi, B.Z.; Zahid Rizwan, Halimah, M.K.; Hashim, M.; Zaid, M.H. M; Reza Zamiri. Use of reflectance spectroscopy accessory for optical characterization of ZnO-Bi2O3-TiO2 ceramics, Int. J. Mol. Sci. 12 (2011) 1496-1504.

DOI: 10.3390/ijms12031496
