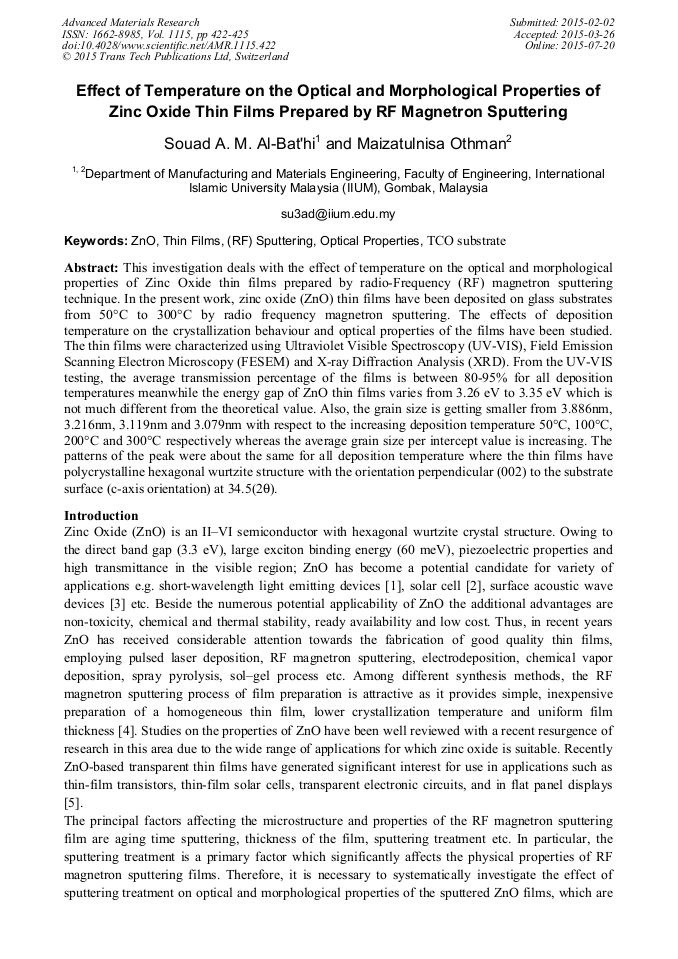

Effect of Temperature on the Optical and Morphological Properties of Zinc Oxide Thin Films Prepared by RF Magnetron Sputtering

Abstract:

This investigation deals with the effect of temperature on the optical and morphological properties of Zinc Oxide thin films prepared by radio-Frequency (RF) magnetron sputtering technique. In the present work, zinc oxide (ZnO) thin films have been deposited on glass substrates from 50°C to 300°C by radio frequency magnetron sputtering. The effects of deposition temperature on the crystallization behaviour and optical properties of the films have been studied. The thin films were characterized using Ultraviolet Visible Spectroscopy (UV-VIS), Field Emission Scanning Electron Microscopy (FESEM) and X-ray Diffraction Analysis (XRD). From the UV-VIS testing, the average transmission percentage of the films is between 80-95% for all deposition temperatures meanwhile the energy gap of ZnO thin films varies from 3.26 eV to 3.35 eV which is not much different from the theoretical value. Also, the grain size is getting smaller from 3.886nm, 3.216nm, 3.119nm and 3.079nm with respect to the increasing deposition temperature 50°C, 100°C, 200°C and 300°C respectively whereas the average grain size per intercept value is increasing. The patterns of the peak were about the same for all deposition temperature where the thin films have polycrystalline hexagonal wurtzite structure with the orientation perpendicular (002) to the substrate surface (c-axis orientation) at 34.5(2θ).

References

[1] Jiao SJ, Zhang ZZ, Lu YM, Shen DZ, Yao B, Zhang JY, et al. ZnO p–n junction lightemitting diodes fabricated on sapphire substrates. Appl Phys Lett 2006; 88: 031911 (1–3).

DOI: 10.1063/1.2166686

[2] Kyaw AKK, Sun XW, Jiang CY, Lo GQ, Zhao DW, Kwong DL An inverted organic solar cell employing a sol–gel derived ZnO electron selective layer, and thermal evaporated MoO3 hole selective layer, Appl Phys Lett 2008; 93: 221107 (1–3).

DOI: 10.1063/1.3039076

[3] Wang ZL, Song J. Piezoelectric nanogenerators based on zinc oxide nanowire arrays. Science 2006; 312: 242–6.

DOI: 10.1126/science.1124005

[4] Klaus Ellmer, Andreas Klein, B. R. (2008). Transparent Conductive Zinc Oxide (p.1–453).

[5] Gabás, M., Barrett, N. T., Ramos-Barrado, J. R., Gota, S., Rojas, T. C., & López-Escalante, M. C. (2009).

[6] Park, J. H. (2006). Deposition-Temperature Effects on AZO Thin Films Prepared by RF Magnetron Sputtering and Their Physical Properties, 49(December), 584–588.

[7] Kumar, G. a, Reddy, M. V. R., & Reddy, K. N. (2011).

[8] Kars Durukan, I., Özen, Y., Kizilkaya, K., Öztürk, M. K., Memmedli, T., & Özçelik, S. (2013).

[9] Kim, S., Moon, Y., Moon, D., Hong, M., Jeon, Y., & Park, J. (2006). Influence of Oxygen on the Electrical Properties of Aluminum-Doped Zinc-Oxide Thin Films, 49(3), 1256–1259.

[10] Yao, P., Hang, S., & Wu, M. (2012). Growth characteristics and properties of Al-doped ZnO thin films by DC magnetron sputtering from AZOY(R) target, 37(3).

DOI: 10.1139/tcsme-2013-0020

[11] S. Ilican, M. Caglar, Y. C. (2007). Determination of the thickness and optical constants of transparent indium-doped ZnO thin films by the envelope method. Materials Science-Poland, 25(3).
