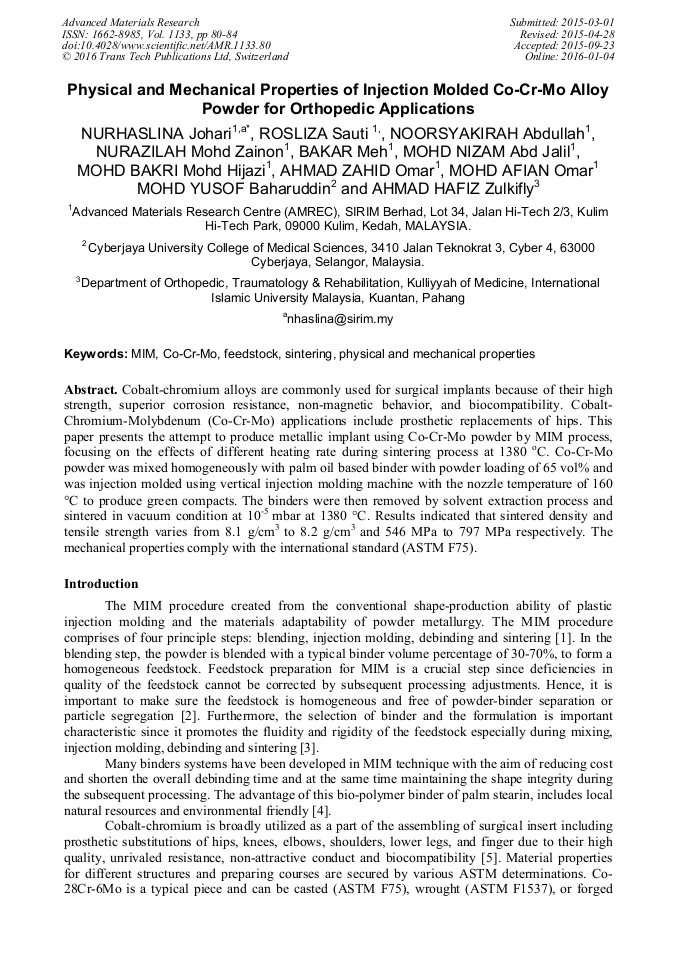

Physical and Mechanical Properties of Injection Molded Co-Cr-Mo Alloy Powder for Orthopedic Applications

Abstract:

Cobalt-chromium alloys are commonly used for surgical implants because of their high strength, superior corrosion resistance, non-magnetic behavior, and biocompatibility. Cobalt-Chromium-Molybdenum (Co-Cr-Mo) applications include prosthetic replacements of hips. This paper presents the attempt to produce metallic implant using Co-Cr-Mo powder by MIM process, focusing on the effects of different heating rate during sintering process at 1380°C. Co-Cr-Mo powder were mixed homogeneously with palm oil and conventional binders respectively with powder loading 65 vol% and was injection molded using vertical injection molding machine with the nozzle temperature of 160°C to produce green compacts. The binders then was removed by solvent extraction process and sintered in vacuum condition at atmosphere 10^-5 mbar at temperature 1380 °C with varied heating rate; 0.5°C/min, 1.0°C/min and 3.0°C/min . Results indicated that sintered density and tensile strength varied from 8.100 gcm^-3 to 8.200 gcm^-3 and 546.971 MPa to 798.767 MPa respectively. The mechanical properties comply with the international standard (ASTM F75).

References

[1] R. Ibrahim, M. Azmirruddin, M. Jabir, N. Johari, M. Muhammad, A. R. A. Talib, Injection Molding of Inconel 718 Parts for Aerospace Application Using Novel Binder System Based on Palm Oil Derivatives, World Academy of Science, Engineering and Technology, Vol. 6. No. 10, (2012).

[2] S. Yulis, M. Amin, K. R. Jamaludin, N. Muhamad, Rheological Properties of SS316L MIM Feedstock Prepared with Different Particle, Size and Powder Loading, Journal The Institution of Engineers, Malaysia, vol 71, No. 2, June (2009).

[3] R. Scheemes, J. R. Spirko, and J. J. Valencia, Powder injection molding of Inconel 718 aerospace components, Advanced Particulate Materials and Processes Conference, West Palm Beach, FL, MPIF.

[4] The Engineering Society for Advancing Mobility Land Sea Air and Space International, Aerospace Material Specification AMS 5662G (1993).

[5] Concise Encyclopedia of Medical and Dental Materials, D. Williams (ed. ), Cambridge, MA, MIT Press (1990).

[6] T. Kilner, A.J. Dempsey, R.M. Pilliar, and G.C. Weatherly, The Effects of Nitrogen Additions to a Cobalt Chromium Surgical Implant Alloy, Part 1: Processing and Microstructure, J. Mater. Sci., Vol. 22, 1987, pp.565-574.

DOI: 10.1007/bf01160770

[7] N. M. S. Adzali, S. B. Jamaludin, M. N. Derman, Effect of Sintering on the Physical and Mechanical Properties of Co-Cr-Mo (F-75)/HAP Composites, Sains Malaysiana 42(12) (2013) 1763–1768.

[8] J. L. Johnson and L. K. Tan, Processing of MIM CO-28Cr-6Mo, Advances in Powder Metallurgy (2000) 13-19.

[9] J. J. Valencia, T. M. Cabe, K. Hens, J. O. Hansen, and A. Bose, Microstructure and Mechanical Properties of alloy 625 and 718 Process by PIM, Edited by E. Loria, TMS.
