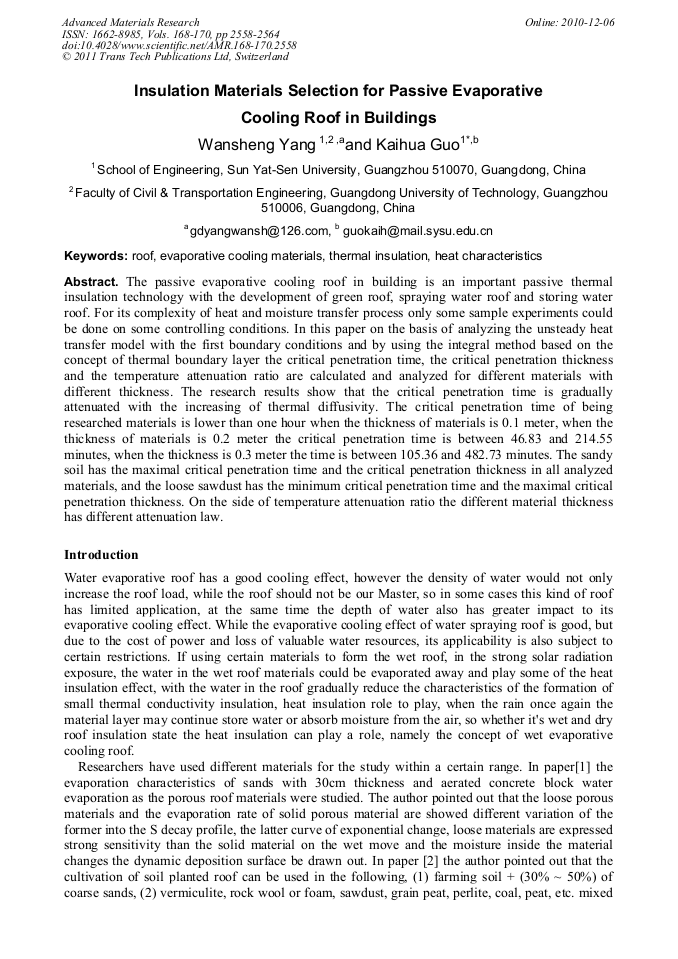

Insulation Materials Selection for Passive Evaporative Cooling Roof in Buildings

Abstract:

The passive evaporative cooling roof in building is an important passive thermal insulation technology with the development of green roof, spraying water roof and storing water roof. For its complexity of heat and moisture transfer process only some sample experiments could be done on some controlling conditions. In this paper on the basis of analyzing the unsteady heat transfer model with the first boundary conditions and by using the integral method based on the concept of thermal boundary layer the critical penetration time, the critical penetration thickness and the temperature attenuation ratio are calculated and analyzed for different materials with different thickness. The research results show that the critical penetration time is gradually attenuated with the increasing of thermal diffusivity. The critical penetration time of being researched materials is lower than one hour when the thickness of materials is 0.1 meter, when the thickness of materials is 0.2 meter the critical penetration time is between 46.83 and 214.55 minutes, when the thickness is 0.3 meter the time is between 105.36 and 482.73 minutes. The sandy soil has the maximal critical penetration time and the critical penetration thickness in all analyzed materials, and the loose sawdust has the minimum critical penetration time and the maximal critical penetration thickness. On the side of temperature attenuation ratio the different material thickness has different attenuation law.

• Periodical: Advanced Materials Research (Volumes 168-170)
• Pages: 2558-2564
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.168-170.2558
• Online since: December 2010
• Authors: Wan Sheng Yang, Kai Hua Guo
• Keywords: Evaporative Cooling Materials, Heat Characteristics, Roof, Thermal Insulation

References

[1] Meng Qinglin. The natural moisture content of porous materials, climate control heat and moisture characteristics of evaporative cooling [J]. Xi'an University of Architecture and Technology, 2001, 33 (4) : 326-328.

[2] Liu Xiaoli Zhang Jiqing. Overburden grass roof design and construction [J]. Zhejiang Construction . 2000 (2) : 34-36.

[3] Xia Yang Dai Tianxing Liu increase equality. Ceramsite wet roof insulation effect of the test study [J]. SCIENCE RESEARCH . 2010. 36 (1) : 234-237.

[4] Cai-Feng Gao Feng Qi-Ya. Roof insulation and Use of evaporation [J]. Chongqing University . 2001. 24 (3) : 41-44.

[5] Huang Xiangfan Film Di Yuhui. For the wall surface of the porous humidity Experimental study of the [J]. Xi'an Engineering Science and Technology, 2006, 20 (6) : 731-734.

[6] summer parade. Japan evaporative cooling effect of roof covering soil [J]. HVAC . 2001. 31 (5) : 39-42.

[7] Zhang Xi China. Heat transfer [M] (fifth edition). Beijing: China Building Industry Press, (2008).

[8] Meng Qinglin. Building Physics [M]. Guangzhou: South China University Press, (2002).

[9] ERG Eckert RM Drake book. Heat and Mass Transfer Analysis [M]. Beijing: Science Press, (1986).
