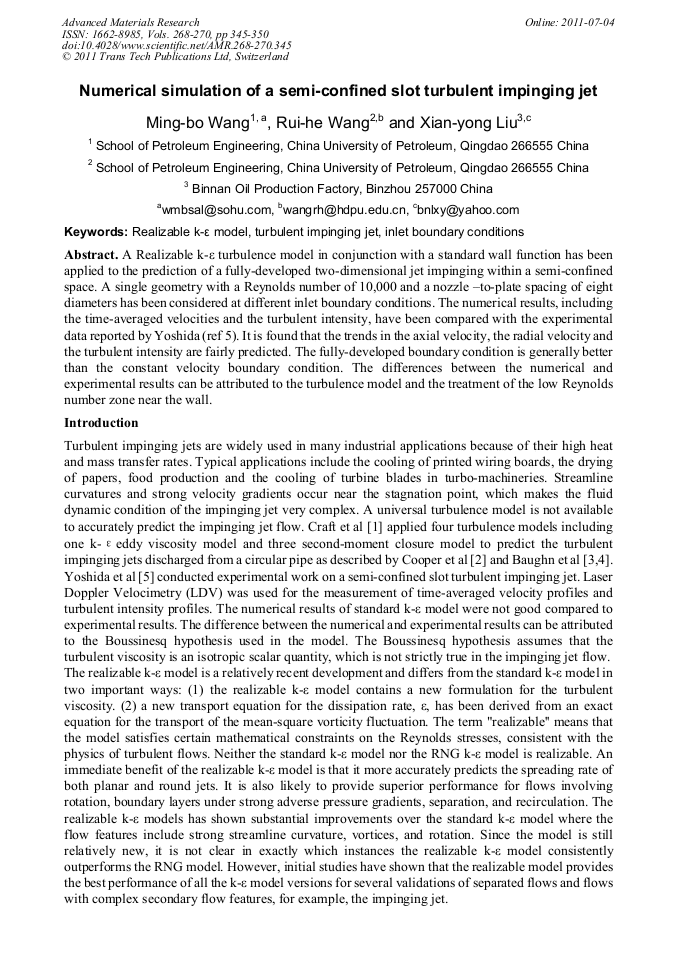

Numerical Simulation of a Semi-Confined Slot Turbulent Impinging Jet

Abstract:

A Realizable k-ε turbulence model in conjunction with a standard wall function has been applied to the prediction of a fully-developed two-dimensional jet impinging within a semi-confined space. A single geometry with a Reynolds number of 10,000 and a nozzle –to-plate spacing of eight diameters has been considered at different inlet boundary conditions. The numerical results, including the time-averaged velocities and the turbulent intensity, have been compared with the experimental data reported by Yoshida (ref 5). It is found that the trends in the axial velocity, the radial velocity and the turbulent intensity are fairly predicted. The fully-developed boundary condition is generally better than the constant velocity boundary condition. The differences between the numerical and experimental results can be attributed to the turbulence model and the treatment of the low Reynolds number zone near the wall.

References

[1] T. J. Craft, L. J. W. Graham and B. E. Launder. Impinging jet studies for turbulence model assessment－II An examination of the performance of four turbulence models. International Journal of Heat and Mass Transfer, Vol. 36 (1993), p.2685.

DOI: 10.1016/s0017-9310(05)80205-4

[2] D. Cooper, D. C. Jackson, B. E. Launder. Impinging jet studies for turbulence model assessment－I Flow-field experiments. International Journal of Heat and Mass Transfer, Vol. 36 (1993), p.2675.

DOI: 10.1016/s0017-9310(05)80204-2

[3] J. W. Baughn and S. Shimizu. Heat transfer measurements from a surface with uniform heat flux impinging jet. Transaction of ASME Journal of Heat Transfer, Vol. 111 (1989), p.1096.

DOI: 10.1115/1.3250776

[4] X. Yan, J. W. Baughn and M. Mesbah. The effect of Reynolds number on the heat transfer distribution from a flat plate to an impinging jet. Fundamental and Applied Heat Transfer Research for Gas Combustion Engines, ASME Heat Transfer Division, Vol. 226 (1992).

DOI: 10.1115/imece2012-87746

[5] H. Yoshida, K. Suenaga, R. Echigo. Turbulence structure and heat transfer of a two-dimensional impinging jet with gas-solid suspensions. International Journal of Heat and Mass Transfer, Vol. 33(1990), p.859.

DOI: 10.1016/0017-9310(90)90069-7

[6] W. C. Reynolds. Fundamentals of turbulence for turbulence modeling and simulation in Lecture Notes for Von Karman Institute, AGARD Lecture Note Series. New York: NATO, (1987).

[7] T-H. Shih, W. W. Liou, A. Shabbir. A new eddy-viscosity model for high Reynolds number turbulent flows. Computers & Fluids, Vol. 24 (1995), p.227.

DOI: 10.1016/0045-7930(94)00032-t

[8] J. A. Fitzgerald, S. V. Garimella. A study of the flow field of a confined and submerged impinging jet. International Journal of Heat and Mass Transfer, Vol. 41 (1998), p.1025.

DOI: 10.1016/s0017-9310(97)00205-6
