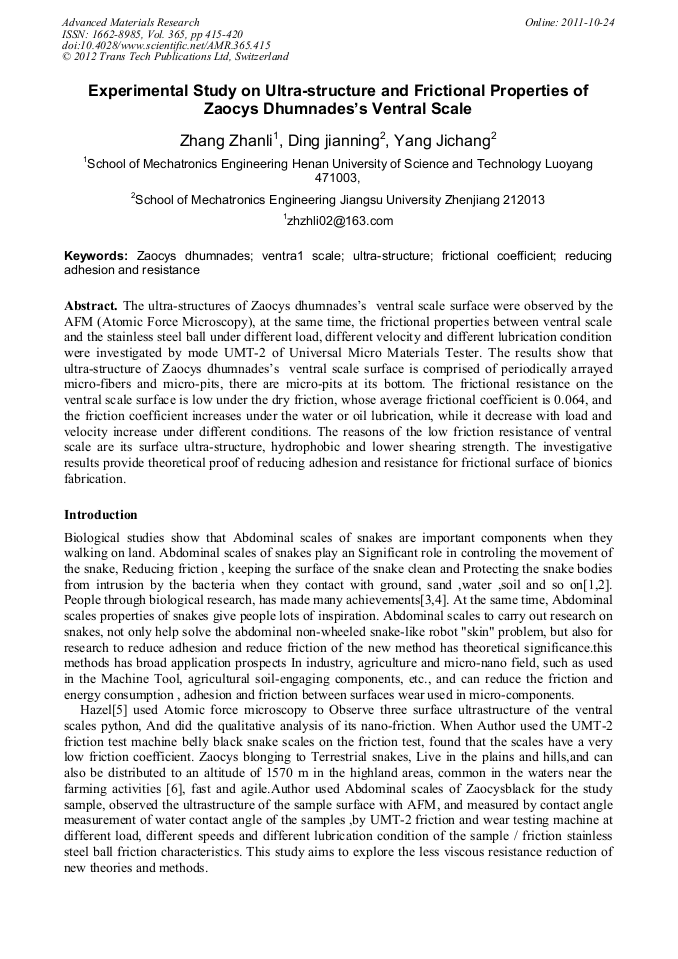

Experimental Study on Ultra-Structure and Frictional Properties of Zaocys Dhumnades’s Ventral Scale

Abstract:

The ultra-structures of Zaocys dhumnades’s ventral scale surface were observed by the AFM (Atomic Force Microscopy), at the same time, the frictional properties between ventral scale and the stainless steel ball under different load, different velocity and different lubrication condition were investigated by mode UMT-2 of Universal Micro Materials Tester. The results show that ultra-structure of Zaocys dhumnades’s ventral scale surface is comprised of periodically arrayed micro-fibers and micro-pits, there are micro-pits at its bottom. The frictional resistance on the ventral scale surface is low under the dry friction, whose average frictional coefficient is 0.064, and the friction coefficient increases under the water or oil lubrication, while it decrease with load and velocity increase under different conditions. The reasons of the low friction resistance of ventral scale are its surface ultra-structure, hydrophobic and lower shearing strength. The investigative results provide theoretical proof of reducing adhesion and resistance for frictional surface of bionics fabrication.

References

[1] H.L. Hua, Y.H. Wu. Snake[M]. Shanghai Science and Technology Press, Shanghai, 1990 (in Chinese).

[2] M.X. Zhang, X.M. Luo, Z.R. Gui, et al. Study on Snake-skin Histology[J]. China Leather, 27(8) (1998): 14-15 (in Chinese).

[3] Shugen Ma, Naoki Tadokoro, Kousuke Inoue. Influence of the gradient of a slope on optimal locomotion curves of a snake-like robot[J]. Advanced Robotics, 2006, 20: 413 – 428.

DOI: 10.1163/156855306776562279

[4] L.Q. Ren, Z.W. Han, J.Q. Li, et al, Experimental investigation of bionic rough curved soil cutting blade surface to reduce soil adhesion and friction[J], Soil & Tillage Research, 2006, 85: 1-12.

DOI: 10.1016/j.still.2004.10.006

[5] Hazel J, Stone M, Grace M S, et al. Nanoscale design of snake skin for reptation locomotions via friction anisotropy[J]. Journal of Biomechanics, 1999, 32: 477-484.

DOI: 10.1016/s0021-9290(99)00013-5

[6] E.M. Zhao, M.H. Huang, Y. Zong, et al. China Fauna[M]. Science Press, Beijing, 1998. P. 462-463(in Chinese).

[7] Z.L. Zhang, J.C. Yang, J.N. Ding, et al. Research on the Nanomechanical properties of the Zaocys dhumnades's ventral epidermis[J]. Chinese Journal of Sersors and Actuators. 2006, 19 (5): 1652-1654(in Chinese).

[8] W.S. Hua, X.F. Wu, H. Lu, et al. Distributions of Nanohardness and Elastic Modulus near the Interface of TiCX/ NiAI Composites[J]. Materials for Mechanical Engineering, 2003, 27(3): 8-11(in Chinese).

[9] Roberts. J. B, Lillywhite. H.B. Lipid barrier to water exchange in reptile epidermis[J]. Science, 1980, 207: 1077-1079.

DOI: 10.1126/science.207.4435.1077

[10] Tsukruk. V. V, Bliznyuk. V. N, Hazel. J, et al. Organic molecular films under shear forces: fluid and solid Langmuir monolayers[J]. Langmuir, 1996, 12: 4840-4849.

DOI: 10.1021/la9602170
