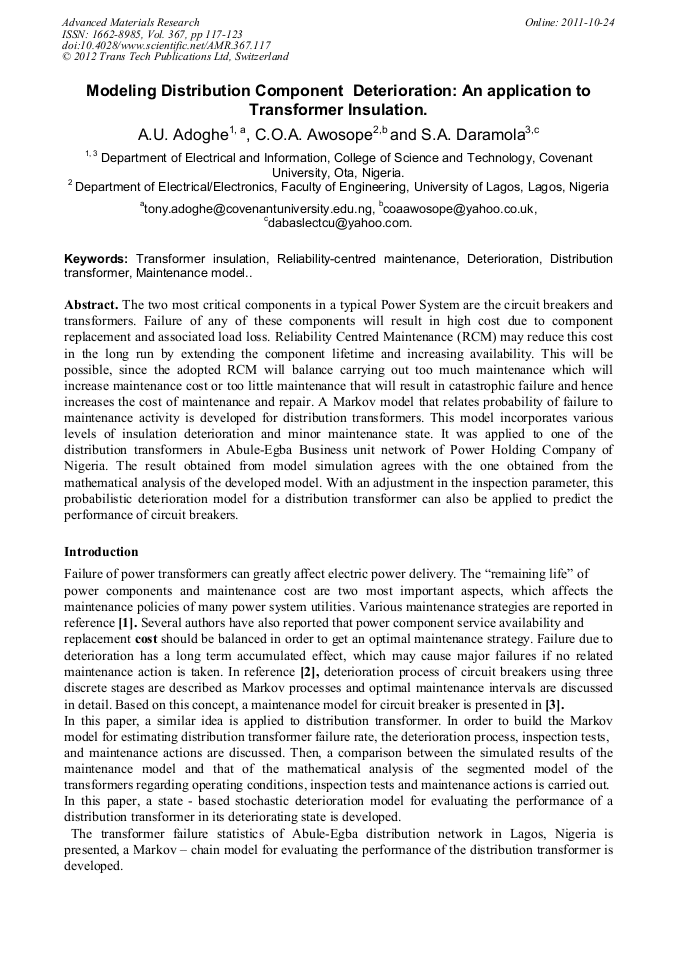

Modeling Distribution Component Deterioration: An Application to Transformer Insulation

Abstract:

The two most critical components in a typical Power System are the circuit breakers and transformers. Failure of any of these components will result in high cost due to component replacement and associated load loss. Reliability Centred Maintenance (RCM) may reduce this cost in the long run by extending the component lifetime and increasing availability. This will be possible, since the adopted RCM will balance carrying out too much maintenance which will increase maintenance cost or too little maintenance that will result in catastrophic failure and hence increases the cost of maintenance and repair. A Markov model that relates probability of failure to maintenance activity is developed for distribution transformers. This model incorporates various levels of insulation deterioration and minor maintenance state. It was applied to one of the distribution transformers in Abule-Egba Business unit network of Power Holding Company of Nigeria. The result obtained from model simulation agrees with the one obtained from the mathematical analysis of the developed model. With an adjustment in the inspection parameter, this probabilistic deterioration model for a distribution transformer can also be applied to predict the performance of circuit breakers.

References

[1] Brown, R.E., Frimpong, G. & Willis, H.L. Failure Rate Modeling Using Equipment Inspection Data, IEEE Transactions on power systems. Vol. 19, No. 2, May (2004).

DOI: 10.1109/tpwrs.2004.825824

[2] Satish N, Panida J, Mladen K, and Chanan S., Circuit Breaker and Transformer Inspection and Maintenance: Probabilistic Models, 8th International Conference on Probabilistic Methods Applied to power systems, Iowa State University, Ames, Iowa, September 12-16, (2004).

[3] Jirutitijaroen, P, Singh, C., Oil-immersed transformer inspection and maintenance: probabilistic models, in proceedings of the 2003 North Americal power Symposium conference, pp.204-208.

[4] A.U. Adoghe, C.O.A. Awosope, J.C. Ekeh A Probabilistic modeling of distribution equipment Deterioration; An application to transformer insulation, International Journal of Engineering & Technology IJET-IJENS, Vol: 10 No: 04, 2011, 62 – 70.

DOI: 10.4028/www.scientific.net/amr.367.117

[5] Ward, B. H., A Survey of New Techniques in Insulation monitoring of power Transformers, IEEE Electrical Insulation Magazine, Vol17, No3, 2011, 16-23.

DOI: 10.1109/57.925299

[6] Ward S.A., Evaluating transformer condition using DGA Oil analysis, IEEE CEIDP, 2003, 463-468.

[7] NYNAS, "Transformer oil handbook, June, (2004).
