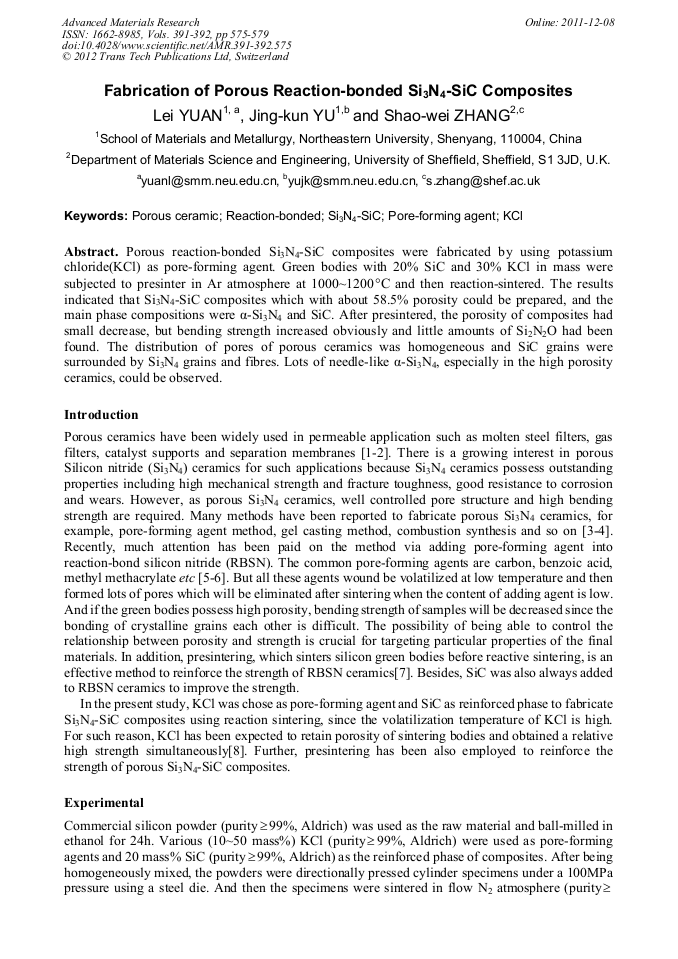

Fabrication of Porous Reaction-Bonded Si₃N₄-SiC Composites

Abstract:

Porous reaction-bonded Si3N4-SiC composites were fabricated by using potassium chloride(KCl) as pore-forming agent. Green bodies with 20% SiC and 30% KCl in mass were subjected to presinter in Ar atmosphere at 1000~1200 and then reaction-sintered. The results indicated that Si₃N₄-SiC composites which with about 58.5% porosity could be prepared, and the main phase compositions were α-Si3N4 and SiC. After presintered, the porosity of composites had small decrease, but bending strength increased obviously and little amounts of Si₂N₂O had been found. The distribution of pores of porous ceramics was homogeneous and SiC grains were surrounded by Si3N4 grains and fibres. Lots of needle-like α-Si₃N₄, especially in the high porosity ceramics, could be observed.

References

[1] R. Barea, M. I. Osendi, P. Miranzow, et al: J. Am. Ceram. Soc. Vol. 88 (2005), p.777.

[2] J. Saggio-Woyansky, C. Scott, W. P. Minnear: J. Am. Ceram. Soc. Bull. (1992), p.1674.

[3] D. Y. Chen, B. L. Zhang, H. R. Zhuang: Ceram. Int. Vol. 29 (2003), p.363.

[4] W. Zhang, H. J. Wang, Z. H. Jin: Materials Letters 59 (2005) p.250.

[5] S. Kaskel, K. Schlichte: J. Catal. Vol. 201 (2001) p.270.

[6] S. Y. Shan, J. F. Yang, Y. Lu, et al: Scripta Materialia Vol. 56 (2007) p.193.

[7] J. Xu, F. Luo, D. M. Zhu: Mater. Sci. Eng. Vol. A488 (2008) p.167.

[8] S. W. Zhang, L. Yuan, J. K. Yu: Interceram Vol. 58 (2009) p.374.

[9] L. Yuan, J. K. Yu, S. W. Zhang: 3rd International Congress on Ceramics Vol. 26 (2010) p.368.
