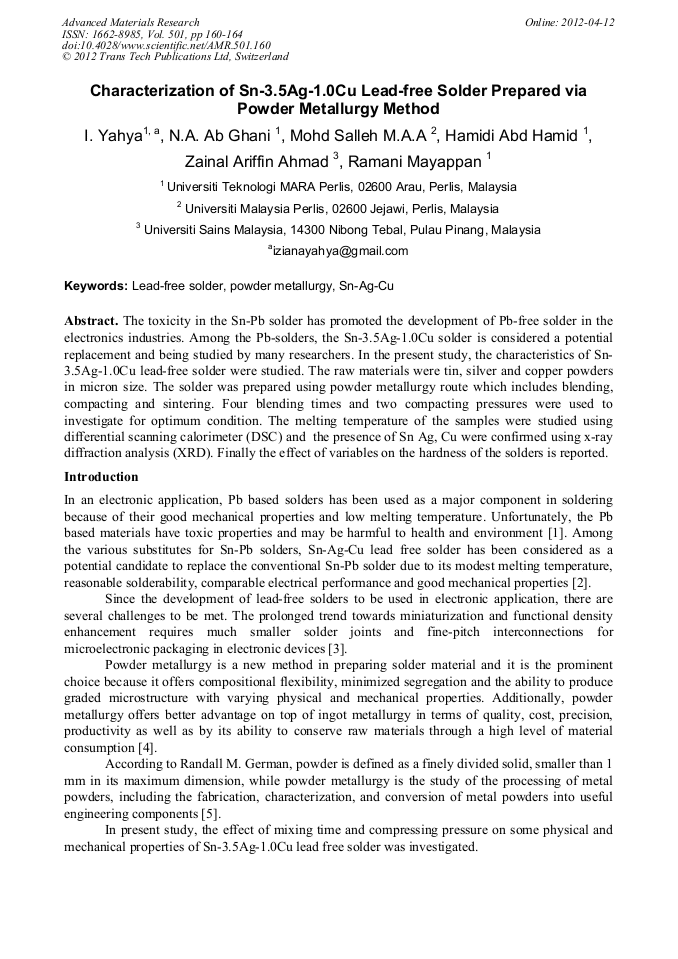

Characterization of Sn-3.5Ag-1.0Cu Lead-Free Solder Prepared via Powder Metallurgy Method

Abstract:

The toxicity in the Sn-Pb solder has promoted the development of Pb-free solder in the electronics industries. Among the Pb-solders, the Sn-3.5Ag-1.0Cu solder is considered a potential replacement and being studied by many researchers. In the present study, the characteristics of Sn-3.5Ag-1.0Cu lead-free solder were studied. The raw materials were tin, silver and copper powders in micron size. The solder was prepared using powder metallurgy route which includes blending, compacting and sintering. Four blending times and two compacting pressures were used to investigate for optimum condition. The melting temperature of the samples were studied using differential scanning calorimeter (DSC) and the presence of Sn Ag, Cu were confirmed using x-ray diffraction analysis (XRD). Finally the effect of variables on the hardness of the solders is reported.

• Periodical: Advanced Materials Research (Volume 501)
• Pages: 160-164
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.501.160
• Online since: April 2012
• Authors: Iziana Yahya, Noor Asikin Ab Ghani, Mohd Arif Anuar Mohd Salleh, Hamidi Abd Hamid, Zainal Arifin Ahmad, Ramani Mayappan
• Keywords: Lead-Free Solder, Powder metallurgy, Sn-Ag-Cu

References

[1] F. E. Atalay, D.Avsar., H. Kaya, V. Yagmur, S. Atalay, T. Seckin, Nanowires of lead-free solder alloy SnCuAg, Journal of Nanomaterials. 2011 (2011) 1-6.

DOI: 10.1155/2011/919853

[2] Gain, A.K., Y.C. Chan, and W.K.C. Yung, Microstructure, thermal analysis and hardness of a Sn-Ag-Cu-1 wt% nano-TiO2 composite solder on flexible ball grid array substrates, Microelectronics Reliability. 51 (2011) 975-984.

DOI: 10.1016/j.microrel.2011.01.006

[3] Shen, J. and Y.C. Chan, Research advances in nano-composite solders, Microelectronics Reliability. 49 (2009) 223-234.

DOI: 10.1016/j.microrel.2008.10.004

[4] Angelo, P.C. and R. Subramanian, Powder Metallurgy: Science, Technology and Applications, first ed., PHI Learning Private Limited, New Delhi, 2009.

[5] German, R.M., Powder Metallurgy Science, second ed., Metal Powder Industries Federation, Princeton, 1994.

[6] Mohd Salleh, M.A.A., Hazizi, M. H. Z., Ahmad, Z. A., Hussin, K., Ahmad, K. R., Wettability, electrical and mechanical properties of 99.3Sn-0.7Cu/Si3N4 novel lead-free nanocomposite solder, Advanced Materials Research. 277 (2011) 106-111.

DOI: 10.4028/www.scientific.net/amr.277.106

[7] Dewidar, M., G.T. Abdel-Jaber, Bakrey, M., Badry, H., Effect of processing parameters and amount of additives on the mechanical properties and wear resistance of copper-based composite, International Journal of Mechanical & Mechatronic IJMME-IJENS. 10 (2010) 25-40.

[8] Brandt, D.A. and J.C. Warner, Metallurgy Fundamental, third ed., The Goodheart-Willcox Company, Inc, Illinois, 1999.
