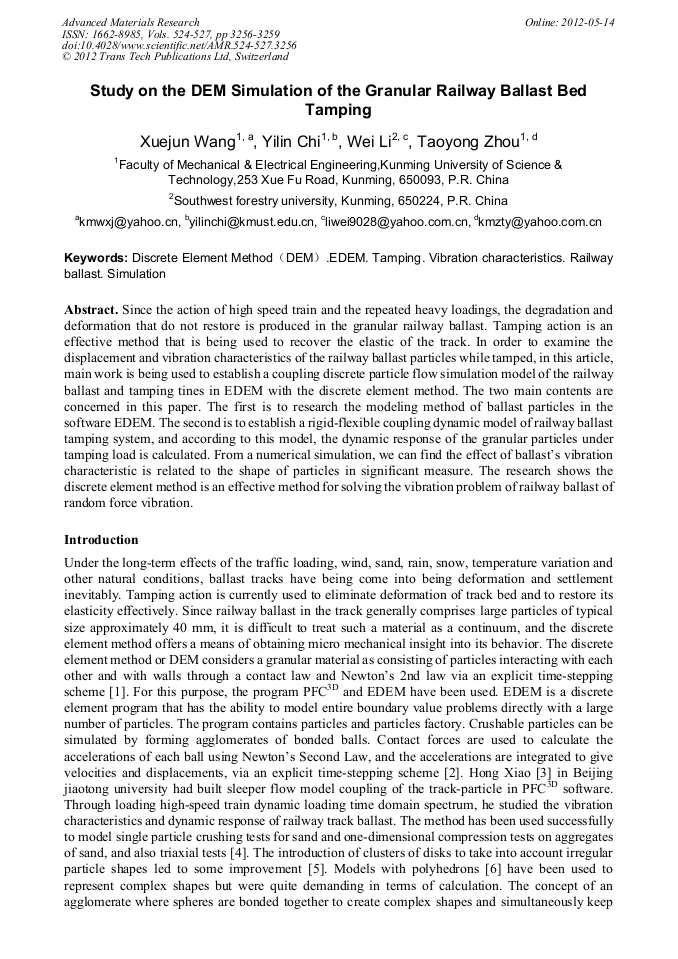

Study on the DEM Simulation of the Granular Railway Ballast Bed Tamping

Abstract:

Abstract. Since the action of high speed train and the repeated heavy loadings, the degradation and deformation that do not restore is produced in the granular railway ballast. Tamping action is an effective method that is being used to recover the elastic of the track. In order to examine the displacement and vibration characteristics of the railway ballast particles while tamped, in this article, main work is being used to establish a coupling discrete particle flow simulation model of the railway ballast and tamping tines in EDEM with the discrete element method. The two main contents are concerned in this paper. The first is to research the modeling method of ballast particles in the software EDEM. The second is to establish a rigid-flexible coupling dynamic model of railway ballast tamping system, and according to this model, the dynamic response of the granular particles under tamping load is calculated. From a numerical simulation, we can find the effect of ballast’s vibration characteristic is related to the shape of particles in significant measure. The research shows the discrete element method is an effective method for solving the vibration problem of railway ballast of random force vibration.

References

[1] Cundall, P.A., Strack O.D.L.:. Géotechnique 29(1), 47–65 (1979)

[2] W. L. Lim. ，G. R. McDowell. [J]. Granular Matter,2005.1

[3] Hong Xiao, Liang GAO; Bowen HOU: submitted to Journal of Railway Engineering Society. 2009(09) .In Chinese

[4] McDowell, G.R., Harireche, O.: G´eotechnique 52(2), 131 (2002)

[5] Thomas, P.A., Bray, J.D.: J. Geotech. Geoenviron. Eng. 125,169–178 (1999)

[6] Lee, Y., Fang, C., Tsou, Y.-R., Lu, L.-S., Yang, C.-T.: Granul.Matter 11(5), 307–315 (2009)

[7] McDowell, G.R., Harireche, O.: Géotechnique 52(4), 299–304 (2002)

[8] Lu,M., McDowell, G.R.: Matter 9(1–2), 71–82 (2007)

[9] Ferellec, J.，McDowell, G.. Granular Matter, v 12, n 5, pp.459-467, October (2010)

[10] Saussine, G.Compaction of Railway Ballast During Tamping Process: a Parametric Study. 6th International Conference on the Micromechanics of Granular Media，Golden CO ，JUL 13-17, 2009，pp.469-472.

DOI: 10.1063/1.3179964

[11] E.Azema etc. : submitted to PHYSICAL REVIEW E，2010（81）：34-39.

[12] Lu, M. , McDowell, G.R. : submitted to Geotechnique, v 60, n 6, pp.459-467, June (2010)

[13] Xuejun Wang, Yilin Chi, The research of the numerical simulation on the granular ballast bed tamping.Advanced Materials Research Vols. 479-481 in (2012)

DOI: 10.4028/www.scientific.net/amr.479-481.1395

[14] ZhaiWanMing, LinJianHui, WangKaiYun. Railway track bed vibration theory simulation and the experimental research. Vibration engineering journal, 2003 04 period.In Chinese
