Friction Welding of Zr₄₁Ti₁₄Cu_12.5Ni₁₀Be_22.5 Bulk Metallic Glass and Temperature Field Simulation

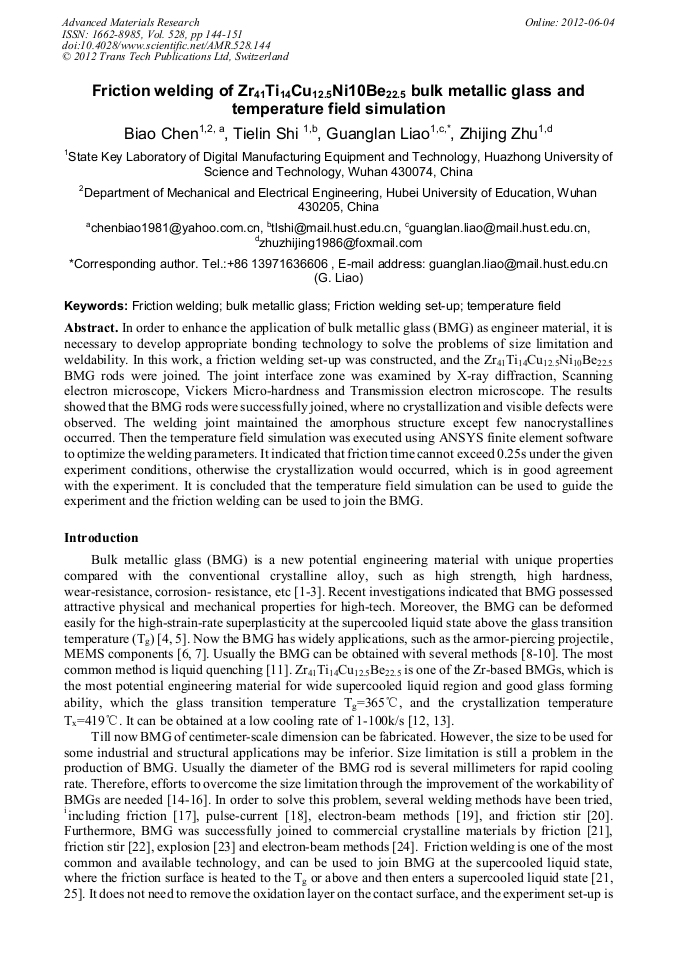

Abstract:

In order to enhance the application of bulk metallic glass (BMG) as engineer material, it is necessary to develop appropriate bonding technology to solve the problems of size limitation and weldability. In this work, a friction welding set-up was constructed, and the Zr₄₁Ti₁₄Cu_12.5Ni₁₀Be_22.5 BMG rods were joined. The joint interface zone was examined by X-ray diffraction, Scanning electron microscope, Vickers Micro-hardness and Transmission electron microscope. The results showed that the BMG rods were successfully joined, where no crystallization and visible defects were observed. The welding joint maintained the amorphous structure except few nanocrystallines occurred. Then the temperature field simulation was executed using ANSYS finite element software to optimize the welding parameters. It indicated that friction time cannot exceed 0.25s under the given experiment conditions, otherwise the crystallization would occurred, which is in good agreement with the experiment. It is concluded that the temperature field simulation can be used to guide the experiment and the friction welding can be used to join the BMG.

• Periodical: Advanced Materials Research (Volume 528)
• Pages: 144-151
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.528.144
• Online since: June 2012
• Authors: Biao Chen, Tie Lin Shi, Guang Lan Liao, Zhi Jing Zhu
• Keywords: Bulk Metallic Glass (BMG), Friction Welding, Friction Welding Set-Up, Temperature Field

References

[1] M. Tsuyoshi, Recent progress in amorphous metallic materials in Japan, Mat. Sci. Eng. 179-180 (1994) 8-16.

[2] M.F. Ashby, A.L. Greer, Metallic glasses as structural materials. Scripta Mater. 54 (2006) 321-326.

DOI: 10.1016/j.scriptamat.2005.09.051

[3] W.H. Wang, C. Dong, C.H. Shek, Bulk metallic glasses. Mat. Sci. Eng. 44 (2004) 45-89.

[4] I. Akihisa, Stabilization and high strain-rate superplasticity of metallic supercooled liquid. Mat. Sci. Eng. 267 (1999) 171-183.

DOI: 10.1016/s0921-5093(99)00089-1

[5] Y. Kawamura, et al., High-strain-rate superplasticity due to Newtonian viscous flow in La55Al25Ni20 metallic glass. Mater. T. Jim. 40 (1999) 794-803.

DOI: 10.2320/matertrans1989.40.794

[6] J. Schroers, et al., Thermoplastic forming of bulk metallic glass—Applications for MEMS and microstructure fabrication. Mat. Sci. Eng. 449-451 (2007) 898-902.

DOI: 10.1016/j.msea.2006.02.398

[7] T.C. Hufnagel, et al., Deformation and failure of Zr57Ti5Cu20Ni8Al10 bulk metallic glass under quasi-static and dynamic compression. J. Mater. Res. 17 (2002) 1441-1445.

DOI: 10.1557/jmr.2002.0214

[8] C Yang, RP Liu, ZJ Zhan et al., Formation of ZrTiCuNiBe bulk metallic glass by shock-wave quenching. Appl. Phys. Lett. 87(2005).

DOI: 10.1063/1.2005367

[9] Z.X. Wang, D.Q. Zhao, M. X. Pan et al., Formation and crystallization of CuZrHfTi bulk metallic glass under ambient and high pressures. J. Phys-Condens. Mat. 15 (2003. ) 5923-5932.

DOI: 10.1088/0953-8984/15/35/302

[10] X. Zhang, et al., Bulk metallic glass rings prepared by a modified water quenching method. International Journal of Minerals, Metall. Mater. Trans. 16 (2009) 108-111.

DOI: 10.1016/s1674-4799(09)60018-2

[11] W.F. Wu, Y. Li, Bulk metallic glass formation near intermetallic composition through liquid quenching, Appl. Phys. Lett. 95, 011906 (2009).

DOI: 10.1063/1.3168411

[12] Y. Zhang, et al., Glass forming properties of Zr-based bulk metallic alloys. J. Non-Cryst. Solids. 315 (2003) 206-210.

DOI: 10.1016/s0022-3093(02)01876-8

[13] J Schroers, R Busch, A Masuhr et al.: Proc LAM-10 International Conference on Liquid and Amorphous Metals No10, (Dortmund, ALLEMAGNE, August 30 1998). 250-52 (2) (1999) 699-703.

[14] I. Akihisa, Stabilization of metallic supercooled liquid and bulk amorphous alloys. Acta. Mater. 48 (2000) 279-306.

DOI: 10.1016/s1359-6454(99)00300-6

[15] F. Jörg, L., Bulk metallic glasses. Intermetallics. 11 (2003) 529-540.

[16] H.S. Shin, et al., Joining of Zr-based bulk metallic glasses using the friction welding method A-3626-2010. J. Alloy. Compd, 434 (2007) 102-105.

DOI: 10.1016/j.jallcom.2006.08.129

[17] C. H. Wong, C.H.S., Friction welding of Zr41Ti14Cu12. 5Ni10Be22. 5 bulk metallic glass, Scripta Mate, 49 (2003) 393-397.

DOI: 10.1016/s1359-6462(03)00306-3

[18] Y. Kawamura, T. Shoji and Y. Ohno, Welding technologies of bulk metallic glasses. J. Non-Cryst. Solids, 317 (2003) 152-157.

DOI: 10.1016/s0022-3093(02)02005-7

[19] S Kagao, Y. Kawamura, Y. Ohno, Electron-beam welding of Zr-based bulk metallic glasses. Mat. Sci. Eng. A. 375-377 (2004) 312-316.

DOI: 10.1016/j.msea.2003.10.085

[20] Z. X Qin, C. Li, H. F. Zhang et al., Friction Stir Welding of Zr55Al10Ni5Cu30Bulk Metallic Glass to Crystalline Aluminum. J. Mater. Sci. Technol. 25 (2009) 853-856.

[21] T. Shoji, Y. Kawamura, Y. Ohno, Friction welding of bulk metallic glasses to different ones. Mat. Sci. Eng. A. 375-377 (2004) 394-398.

DOI: 10.1016/j.msea.2003.10.183

[22] D. Wang, B.L. X, Z. Y. Ma et al., Friction stir welding of Zr55Cu30Al10Ni5 bulk metallic glass to Al–Zn–Mg–Cu alloy. Scripta Mater. 60 (2009) 112–115.

DOI: 10.1016/j.scriptamat.2008.09.014

[23] A. Chiba, Y. Kawamura, M. Nishida, Explosive Welding of ZrTiCuNiBe Bulk Metallic Glass to Crystalline Metallic Plates, Mater. Sci. Forum. 556 (2008) 119-124.

DOI: 10.4028/www.scientific.net/msf.566.119

[24] J. Kim, Y. Kawamura, Electron beam welding of the dissimilar Zr-based bulk metallic glass and Ti metal. Scripta Mater. 56 (2007) 709-712.

DOI: 10.1016/j.scriptamat.2006.12.046

[25] Y. Kawamura, Y. Ohno, Superplastic bonding of bulk metallic glasses using friction. Scripta Mater. 45 (2001) 279-285.

DOI: 10.1016/s1359-6462(01)01025-9
