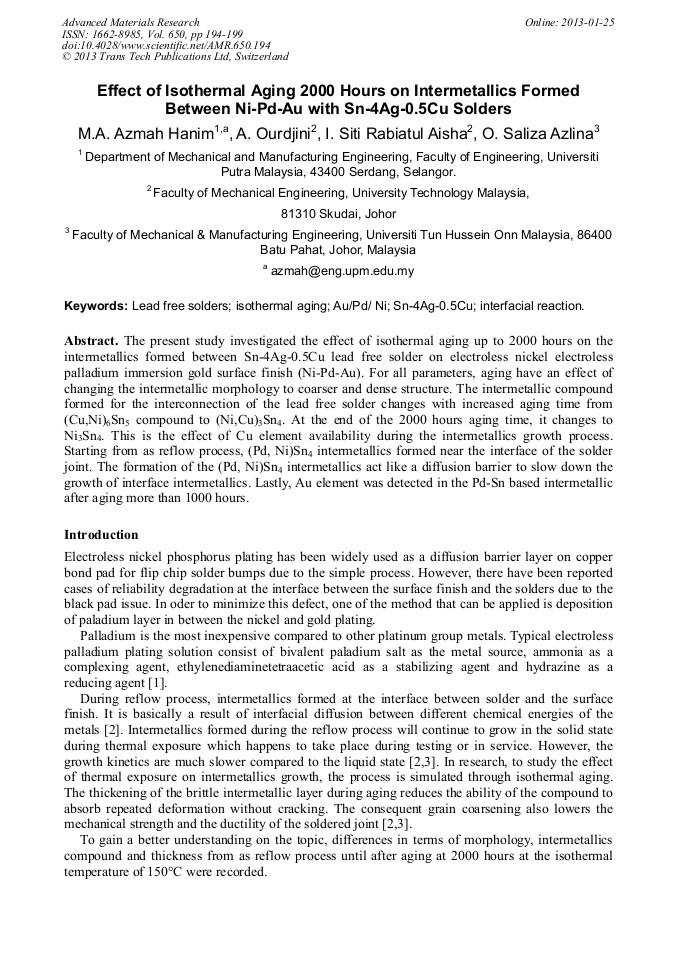

Effect of Isothermal Aging 2000 Hours on Intermetallics Formed between Ni-Pd-Au with Sn-4Ag-0.5Cu Solders

Abstract:

The present study investigated the effect of isothermal aging up to 2000 hours on the intermetallics formed between Sn-4Ag-0.5Cu lead free solder on electroless nickel electroless palladium immersion gold surface finish (Ni-Pd-Au). For all parameters, aging have an effect of changing the intermetallic morphology to coarser and dense structure. The intermetallic compound formed for the interconnection of the lead free solder changes with increased aging time from (Cu,Ni)₆Sn₅ compound to (Ni,Cu)₃Sn₄. At the end of the 2000 hours aging time, it changes to Ni₃Sn₄. This is the effect of Cu element availability during the intermetallics growth process. Starting from as reflow process, (Pd, Ni)Sn₄ intermetallics formed near the interface of the solder joint. The formation of the (Pd, Ni)Sn₄ intermetallics act like a diffusion barrier to slow down the growth of interface intermetallics. Lastly, Au element was detected in the Pd-Sn based intermetallic after aging more than 1000 hours.

You might also be interested in these eBooks

Advances in Materials Science and Engineering

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 650)

Pages:

194-199

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.650.194

Citation:

Cite this paper

Online since:

January 2013

Authors:

M.A. Azmah Hanim, A. Ourdjini, I. Siti Rabiatul Aisha, O. Saliza Azlina

Keywords:

Au/Pd/Ni, Interfacial Reaction, Isothermal Aging, Lead Free Solders, Sn-4Ag-0.5Cu

Export:

RIS, BibTeX

Price:

Permissions:

Request Permissions

Сopyright:

Citation:

References

[1] M. Haga, K. Tsuji, H. Nawafune, S. Mizumoto, E. Uchida, Palladium-base Electroless Plating Solution, U. S. Patent 4, 804, 410 (1989).

Google Scholar

[2] K. Suganuma, Lead-Free Soldering in Electronics: Science, Technology and Environmental Impact, Copyright by Marcel Dekker, Inc. (2004).

Google Scholar

[3] S. Rudolf, Surface Mount Technology. Butterworth-Heinemann Ltd. (1994).

Google Scholar

[4] F. Pearlstein, R.F. Weightman, Plating. 56 (1969) 1158.

Google Scholar

[5] A.I. Zayats, A.I. Stepanowa, A.V. Gorodyskii, Zashch. Metal. 9 (1973) 116.

Google Scholar

[6] C.E. Ho, R.Y. Tsai, Y.L. Lin, C.R. Kao, Effect of Cu Concentration on the Reactions between Sn-Ag-Cu Solders and Ni, J Electronic Materials. 31 (2002) 584-590.

DOI: 10.1007/s11664-002-0129-0

Google Scholar

[7] J.W. Yoon, B.I. Noh, J.H. Yoon, H.B. Kang, S.B. Jung, Sequential Interfacial Intermetallic Compound Formation of Cu6Sn5 and Ni3Sn4 between Sn-Ag-Cu Solder and ENEPIG Substrate during Reflow Process, J Alloys and Compounds. 509 (2011) 153-156.

DOI: 10.1016/j.jallcom.2011.01.015

Google Scholar

[8] W.H. Wu, C.S. Lin, S.H. Huang, C.E. Ho, Influence of Palladium Thickness on the Soldering Reaction Between Sn-3Ag-0. 5Cu and Au/Pd(P)/ Ni(P) Surface Finish, J Electronic Materials. 39 (2010) 2387-2395.

DOI: 10.1007/s11664-010-1351-9

Google Scholar

[9] R. Labie, W. Ruythooren, J.V. Humbeeck, Solid State Diffusion in Cu-Sn and Ni-Sn Diffusion Couples with Flip-chip Scale Dimensions, J Intermetallics 15 (2007) 396-403.

DOI: 10.1016/j.intermet.2006.08.003

Google Scholar

[10] T. Laurila, V. Vuorinen, J.K. Kivilahti, Interfacial Reactions between Lead-free Solders and Common Base Materials, J Materials Science and Engineering. 49 (2005) 1-60.

Google Scholar

[11] S. Gaurav, K. Vaidyanathan, Kinetics of Intermetallics Growth between Lead Free Solders and Silver-Palladium Metallizations, Proceedings of Electronics Packaging Technology Conference. (2006) 190-195.

DOI: 10.1109/eptc.2006.342714

Google Scholar
