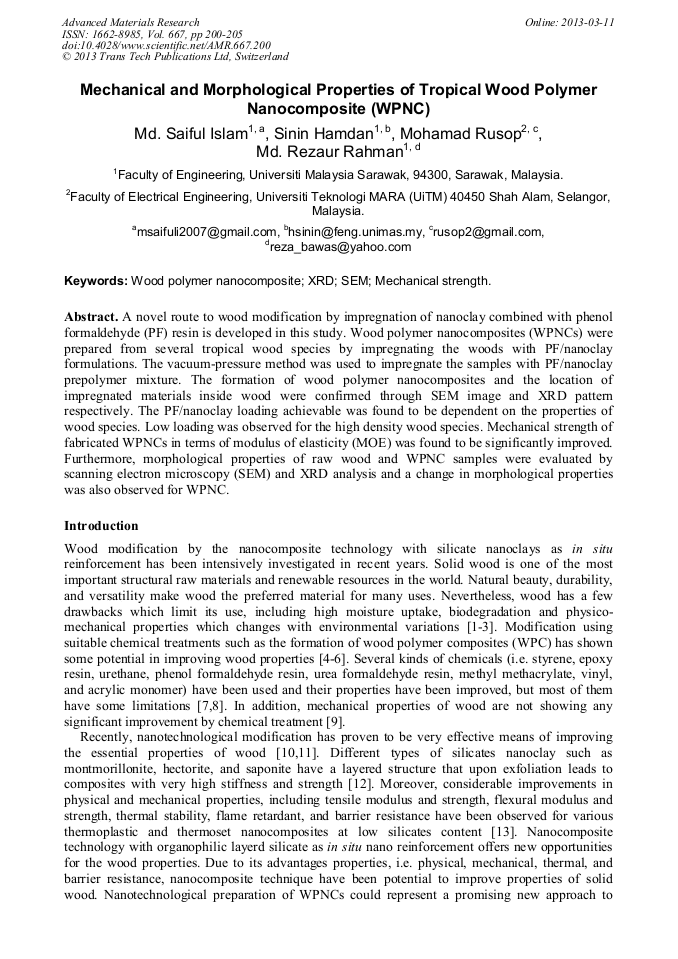

Mechanical and Morphological Properties of Tropical Wood Polymer Nanocomposite (WPNC)

Abstract:

A novel route to wood modification by impregnation of nanoclay combined with phenol formaldehyde (PF) resin is developed in this study. Wood polymer nanocomposites (WPNCs) were prepared from several tropical wood species by impregnating the woods with PF/nanoclay formulations. The vacuum-pressure method was used to impregnate the samples with PF/nanoclay prepolymer mixture. The formation of wood polymer nanocomposites and the location of impregnated materials inside wood were confirmed through SEM image and XRD pattern respectively. The PF/nanoclay loading achievable was found to be dependent on the properties of wood species. Low loading was observed for the high density wood species. Mechanical strength of fabricated WPNCs in terms of modulus of elasticity (MOE) was found to be significantly improved. Furthermore, morphological properties of raw wood and WPNC samples were evaluated by scanning electron microscopy (SEM) and XRD analysis and a change in morphological properties was also observed for WPNC.

References

[1] L.D. Vetter, M. Stevens, J.V. Acker, Fungal decay resistance and durability of organosilicon-treated wood, Int. Biodet. & Biodeg. 63 (2009) 130-134.

DOI: 10.1016/j.ibiod.2008.08.002

[2] M.K. Yalinkilic, K. Tsunoda, M. Takahashi, E.D. Gezer, W. Dwianto, H. Nemoto, Enhancement of biological and physical properties of wood by boric acid-vinyl monomer combination treatment, Holzforschung. 52(6) (1998) 667-672.

DOI: 10.1515/hfsg.1998.52.6.667

[3] S. Kumar, Chemical modification of wood, Wood Fib. Sci. 26 (1994) 270-280.

[4] M.S. Islam, S. Hamdan, M.R. Rahman, I. Jusoh, A.S. Ahmed, The effect of crosslinker on mechanical and morphological properties of tropical wood material composites, Mat. & Design. 32 (2011) 2221-2227.

DOI: 10.1016/j.matdes.2010.11.026

[5] R. Bergman, R.E. Ibach, C. LaPasha, J. Denig, Evaluating physical properties changes for small diameter plantation-grown southern pine after in situ polymerization of an acrylic monomer, Forest Prod. J. 59 (10) (2009) 64-71.

DOI: 10.13073/0015-7473-59.10.64

[6] U.C. Yildiz, S. Yildiz, E.D. Gezer, Mechanical properties and decay resistance of wood polymer composites prepared from fast growing species in Turkey, Bioresource Technol. 96 (2005) 1003-1011.

DOI: 10.1016/j.biortech.2004.09.010

[7] R.M. Rowell. Chemical modification of wood: In handbook of wood chemistry and wood composite. Rowell, R.M. (ed. ) Taylor and Francis, (2005).

[8] M.S. Islam, S. Hamdan, M.R. Rahman, I. Jusoh, N.F. Ibrahim, Dynamic Young's modulus and dimensional stability of batai tropical wood impregnated with polyvinyl alcohol, J. Sci. Res. 2(2) (2010) 227.

DOI: 10.3329/jsr.v2i2.2729

[9] P. Larsson, R. Simonson, A study of strength, hardness and deformation of cetylated Scandinavian softwood, Holz Roh Werkst. 52 (1994) 83-86.

DOI: 10.1007/bf02615470

[10] X. Cai, B. Riedl, S.Y. Zhang, H. Wan, The impact of interphase between wood, melamine-urea-formaldehyde and layered silicate on the performance of wood polymer nanocomposites, Holzforschung 61 (2007) 148-154.

DOI: 10.1515/hf.2007.027

[11] X. Cai, B. Riedl, S.Y. Zhang, H. Wan, Effects of nanofillers on water resistance and dimensional stability of solid wood modified by melamine-urea-formaldehyde resin, Wood Fib. Sci. 39(2) (2007) 307-318.

[12] P. Bordes, E. Pollet, L. Averous, Nano-biocomposites : Biodegradable polyester/nanoclay system. Prog. in Polym. Sci. 34 (2009) 125-155.

DOI: 10.1016/j.progpolymsci.2008.10.002

[13] S.S. Ray, M. Okamoto, Polymer/layered silicate nano-compoistes: a review from preparation to processing, Prog. Polym. Sci. 28 (2003) 1539-1641.

DOI: 10.1016/j.progpolymsci.2003.08.002

[14] M.G. S Yap, L.H.L. Chia, S.H. Teoh, Wood polymer composites from some tropical hardwood, J. Wood Chem. Technol. 10(1) (1990) 1-19.

[15] M. Deka, C.M. Saikia, Chemical modification of wood with thermosetting resin: Effect on dimensional stability and strength property, Bioresource Technol. 73 (2000) 179-181.

DOI: 10.1016/s0960-8524(99)00167-4

[16] N.E. Zafeiropoulos, D.R. Williams, C.A. Baillie, F.L. Matthews, Engineering and characterisation of the interface in flax fibre/Polypropylene, Compos. Part A. 33(8) (2002) 1083-1093.

DOI: 10.1016/s1359-835x(02)00082-9

[17] M.A. Khan, K.M.I. Ali, W. Wang, Electrical properties and X-ray diffraction of wood and wood plastic composite (WPC), Radiat. Phys. Chem. 38(3) (1991) 303-306.

DOI: 10.1016/1359-0197(91)90097-l
