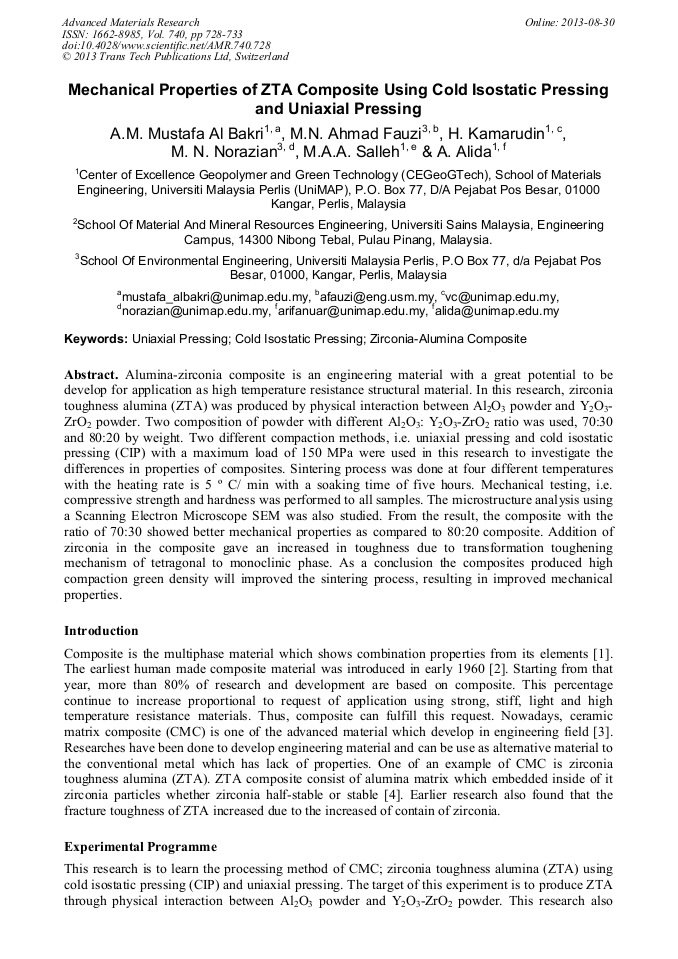

Mechanical Properties of ZTA Composite Using Cold Isostatic Pressing and Uniaxial Pressing

Abstract:

Alumina-zirconia composite is an engineering material with a great potential to be develop for application as high temperature resistance structural material. In this research, zirconia toughness alumina (ZTA) was produced by physical interaction between Al₂O₃ powder and Y₂O₃-ZrO₂ powder. Two composition of powder with different Al₂O₃: Y₂O₃-ZrO₂ ratio was used, 70:30 and 80:20 by weight. Two different compaction methods, i.e. uniaxial pressing and cold isostatic pressing (CIP) with a maximum load of 150 MPa were used in this research to investigate the differences in properties of composites. Sintering process was done at four different temperatures with the heating rate is 5 o C/ min with a soaking time of five hours. Mechanical testing, i.e. compressive strength and hardness was performed to all samples. The microstructure analysis using a Scanning Electron Microscope SEM was also studied. From the result, the composite with the ratio of 70:30 showed better mechanical properties as compared to 80:20 composite. Addition of zirconia in the composite gave an increased in toughness due to transformation toughening mechanism of tetragonal to monoclinic phase. As a conclusion the composites produced high compaction green density will improved the sintering process, resulting in improved mechanical properties.

• Periodical: Advanced Materials Research (Volume 740)
• Pages: 728-733
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.740.728
• Online since: August 2013
• Authors: A.M. Mustafa Al Bakri, Mohd Noor Ahmad Fauzi, H. Kamarudin, M.N. Norazian, Mohd Arif Anuar Mohd Salleh, A. Alida
• Keywords: Cold Isostatic Pressing, Uniaxial Pressing, Zirconia-Alumina Composite

References

[1] Mustaffa, A. Sains Bahan. Jilid Satu. Kuala Lumpur: Dewan Bahasa dan Pustaka. P. 362-368 (1991).

[2] Chawla, K. K., Ceramic Matrix Composites. London: Chapman & Hall (1993).

[3] Strong, A. B., Fundamentals of Composites Manufacturing, Materials, Methods and Applications. Michigan: Society of Manufacturing Engineers. P. 39 (1989).

[4] Casellas, D., Rafols, I., Llanes, L., Anglada, M., Fracture Toughness of Zirconia-Alumina Composites. International Journal of Refractory Metals & Hard Materials. 17: 11-20 (1998).

DOI: 10.1016/s0263-4368(98)00064-x

[5] Ahmad Fauzi, M. N., Reformulation of Vitrified Quartz-containing Whitewares. Ph. D Thesis. University of Sheffield (1995).

[6] Hull, D. and Clyne, T. W. (1996). An Introduction to Composite Materials. 2nd Ed. Cambridge: Cambridge University Press. P. 21.
