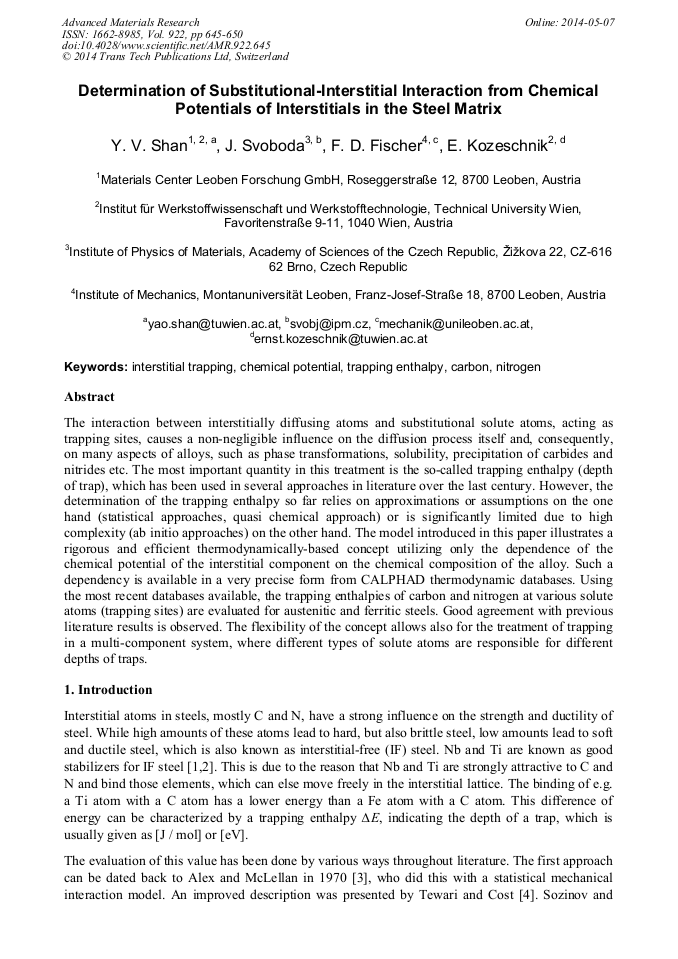

Determination of Substitutional-Interstitial Interaction from Chemical Potentials of Interstitials in the Steel Matrix

Abstract:

The interaction between interstitially diffusing atoms and substitutional solute atoms, acting as trapping sites, causes a non-negligible influence on the diffusion process itself and, consequently, on many aspects of alloys, such as phase transformations, solubility, precipitation of carbides and nitrides etc. The most important quantity in this treatment is the so-called trapping enthalpy (depth of trap), which has been used in several approaches in literature over the last century. However, the determination of the trapping enthalpy so far relies on approximations or assumptions on the one hand (statistical approaches, quasi chemical approach) or is significantly limited due to high complexity (ab initio approaches) on the other hand. The model introduced in this paper illustrates a rigorous and efficient thermodynamically-based concept utilizing only the dependence of the chemical potential of the interstitial component on the chemical composition of the alloy. Such a dependency is available in a very precise form from CALPHAD thermodynamic databases. Using the most recent databases available, the trapping enthalpies of carbon and nitrogen at various solute atoms (trapping sites) are evaluated for austenitic and ferritic steels. Good agreement with previous literature results is observed. The flexibility of the concept allows also for the treatment of trapping in a multi-component system, where different types of solute atoms are responsible for different depths of traps.

References

[1] S. Feliu, M. L. Perez-Revenga, Effect of alloying elements (Ti, Nb, Mn and P) and the water vapour content in the annealing atmosphere on the surface composition of interstitial-free steels at the galvanizing temperature, Appl. Surf. Sci. 229 (2004) 112-123.

DOI: 10.1016/j.apsusc.2004.01.047

[2] A. Oudin, M. R. Barnett, P. D. Hodgson, Grain size effect on the warm deformation behavior of a Ti-IF steel, Mater. Sci. Eng. A 367 (2004) 282-294.

DOI: 10.1016/j.msea.2003.10.273

[3] K. Alex, R. B. McLellan, A quasi-chemical approach to the thermodynamics of ternary solid solutions containing both substiutional and interstitial solute atoms, J. Phys. Chem. Solids 32 (1971) 449-457.

DOI: 10.1016/0022-3697(71)90029-1

[4] S. N. Tewari, J. R. Cost, Diffusivity of carbon in Fe-V alloys, J. Mater. Sci. 17 (1982) 1639-1648.

[5] A. L. Sozinov, V. G. Gavriljuk, Estimation of interaction energies Me-(C,N) in f.c.c. iron-based alloys using Thermo-Calc thermodynamica database, Scripta mater. 41 (1999) 679-683.

DOI: 10.1016/s1359-6462(99)00107-4

[6] C. Domain, C. S. Becquart, J. Foct, Ab initio study of foreign interstitial atom (C, N) interactions with intrinsic point defects in α-Fe, Phys. Rev. B 69 (2004) 144112, 1-16.

DOI: 10.1103/physrevb.69.144112

[7] D. E. Jiang, E. A. Carter, Carbon dissolution and diffusion in ferrite and austenite from first principles, Phys. Rev. B 67 (2003) 214103, 1-11.

DOI: 10.1103/physrevb.67.214103

[8] J. H. Dai, Y. Song, Influence of H, C, N and O impurities on the stability of Mg and Al from first-principles calculations, Modelling Simul. Mater. Sci. Eng. 21 (2013) 055014, 1-8.

DOI: 10.1088/0965-0393/21/5/055014

[9] M. S. Blanter, L. B. Magalas, Carbon-substitutional interaction in austenite, Scripta mater. 43 (2000) 435-440.

DOI: 10.1016/s1359-6462(00)00450-4

[10] J. Svoboda, F. D. Fischer, Modelling for hydrogen diffusion in metals with traps revisited, Acta mater. 60 (2012) 1211-1220.

DOI: 10.1016/j.actamat.2011.11.025

[11] F. D. Fischer, E. Kozeschnik, J. Svoboda, Interstitial diffusion in systems with multiple sorts of traps, Modelling Simul. Mater. Sci. Eng. 21 (2013) 025008, 1-13.

DOI: 10.1088/0965-0393/21/2/025008

[12] J. Svoboda, Y. V. Shan, E. Kozeschnik, F. D. Fischer, Determination of depths of interstitial traps from thermodynamic data – A new view on carbon trapping and diffusion, Modelling Simul. Mater. Sci. Eng. 21 (2013) 065012, 1-15.

DOI: 10.1088/0965-0393/21/6/065012

[13] R. A. Oriani, The diffusion and trapping of hydrogen in steel, Acta Metall. 18 (1970) 147-157

[14] A. T. Paxton, C. Elsässer, Electronic structure and total energy of interstitial hydrogen in iron: Tight-binding models, Phys Rev. B 82 (2010) 235125, 1-15.

DOI: 10.1103/physrevb.82.235125

[15] M. Ruda, D. Farkas, Atomistic simulations in the Fe-C system, Comput. Mater. Sci. 45 (2009) 550-560.

[16] MatCalc Database mc_fe_v1.028.tdb, 2012-09-28, Institute of Materials Science and Technology, Vienna University of Technology.
