Mechanical and Electrical Properties of Sn-3.5Ag Solder/Cu BGA Packages during Multiple Reflows

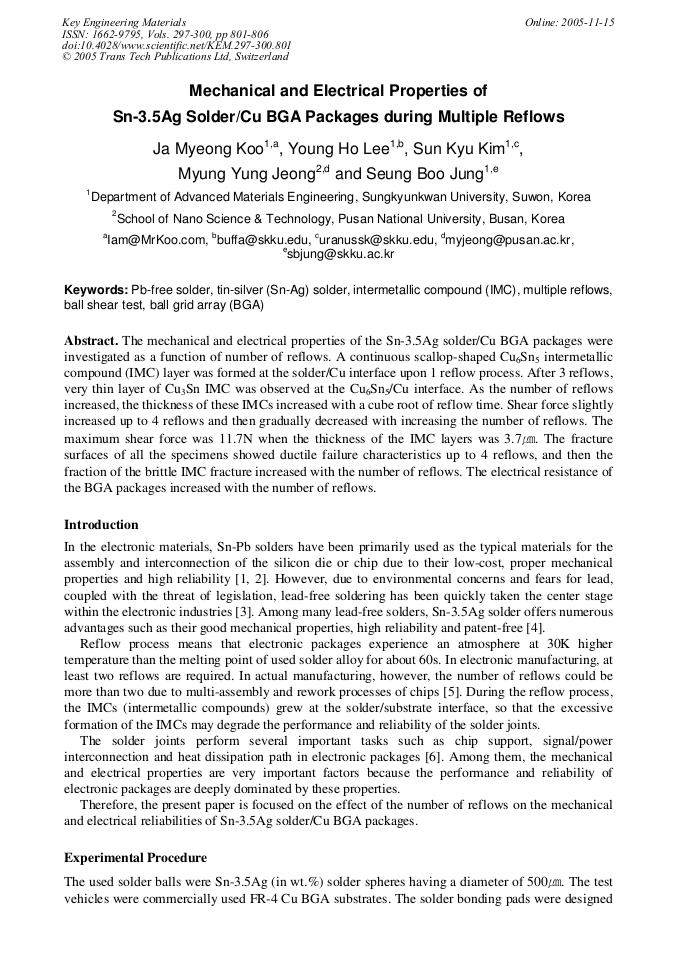

Article Preview

Abstract:

The mechanical and electrical properties of the Sn-3.5Ag solder/Cu BGA packages were investigated as a function of number of reflows. A continuous scallop-shaped Cu6Sn5 intermetallic compound (IMC) layer was formed at the solder/Cu interface upon 1 reflow process. After 3 reflows, very thin layer of Cu3Sn IMC was observed at the Cu6Sn5/Cu interface. As the number of reflows increased, the thickness of these IMCs increased with a cube root of reflow time. Shear force slightly increased up to 4 reflows and then gradually decreased with increasing the number of reflows. The maximum shear force was 11.7N when the thickness of the IMC layers was 3.7㎛. The fracture surfaces of all the specimens showed ductile failure characteristics up to 4 reflows, and then the fraction of the brittle IMC fracture increased with the number of reflows. The electrical resistance of the BGA packages increased with the number of reflows.

You might also be interested in these eBooks
Advances in Fracture and Strength View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 297-300)

Pages:

801-806

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.297-300.801

Citation:

Cite this paper

Online since:

November 2005

Authors:

Ja Myeong Koo, Young Ho Lee, Sun Kyu Kim, Myung Yong Jeong, Seung Boo Jung

Keywords:

Ball Grid Array BGA, Ball Shear Test, Intermetallic Compound (IMC), Multiple Reflows, Pb-Free Solder, Tin-Silver (Sn-Ag) Solder

Export:

RIS, BibTeX

Price:

Permissions:

Request Permissions

Сopyright:

© 2005 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] M. Abtew and G. Selvaduray: Mater. Sci. Eng. Vol. 27 (2000), p.95.

Google Scholar

[2] N.C. Lee: Solder. Surf. Mt. Tech. 26 (1997) pp.65-69.

Google Scholar

[3] R. Ludwig, N.C. Lee, C. Fan and Y. Zhang: Solder. Surf. Mt. Tech. Vol. 14-3 (2002), p.19.

Google Scholar

[4] J.H. Lau, C.P. Wong, N.C. Lee and S.W. Ricky Lee: Electronics Manufacturing (McGraw-Hill, New York 2003).

Google Scholar

[5] K.N. Tu, A.M. Gusak and M. Li: J. Appl. Phys. Vol. 93 (2003), p.1335.

Google Scholar

[6] J.H. Lau: Flip Chip Technologies (McGraw-Hill, New York 1995).

Google Scholar

[7] R.J. Coyle, P.P. Solan, A.J. Serafino and S.A. Gahr: Electronic Components and Technology Conference (2000), p.160.

Google Scholar

[8] JESD22-117 standard, JEDEC Solid State Technology Association (2001).

Google Scholar

[9] C.R. Barrett, W.D. Nix, and A.S. Tetelman: The Principles of Engineering Materials (Prentice- Hall, New Jersey 1973).

Google Scholar

[10] S. Bader, W. Gust and H. Hieber: Acta Metall. Mater. Vol. 43 (1995), p.329.
