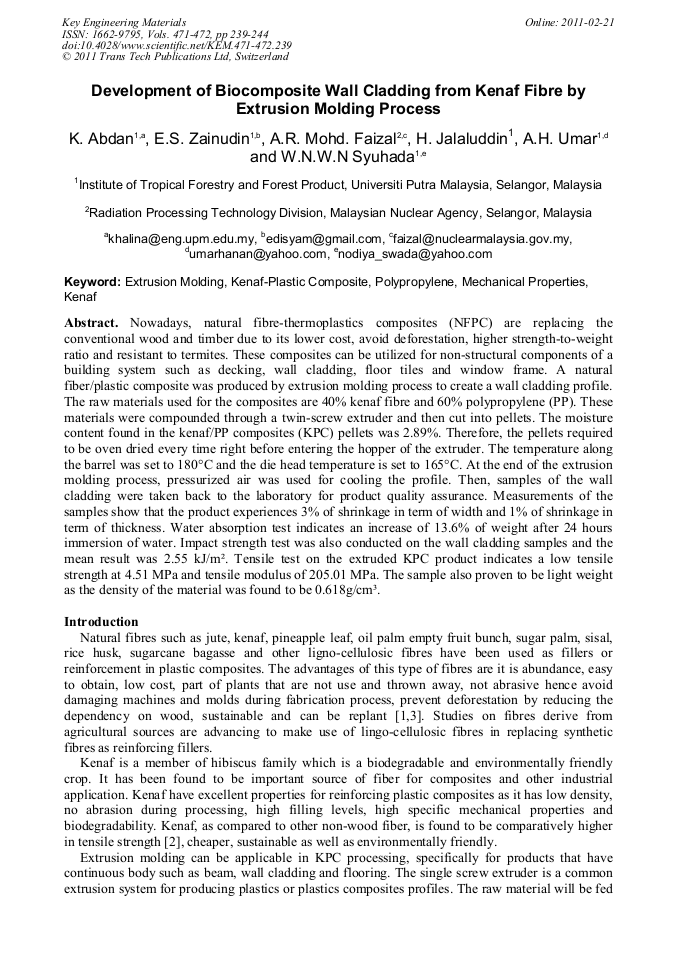

Development of Biocomposite Wall Cladding from Kenaf Fibre by Extrusion Molding Process

Abstract:

Nowadays, natural fibre-thermoplastics composites (NFPC) are replacing the conventional wood and timber due to its lower cost, avoid deforestation, higher strength-to-weight ratio and resistant to termites. These composites can be utilized for non-structural components of a building system such as decking, wall cladding, floor tiles and window frame. A natural fiber/plastic composite was produced by extrusion molding process to create a wall cladding profile. The raw materials used for the composites are 40% kenaf fibre and 60% polypropylene (PP). These materials were compounded through a twin-screw extruder and then cut into pellets. The moisture content found in the kenaf/PP composites (KPC) pellets was 2.89%. Therefore, the pellets required to be oven dried every time right before entering the hopper of the extruder. The temperature along the barrel was set to 180°C and the die head temperature is set to 165°C. At the end of the extrusion molding process, pressurized air was used for cooling the profile. Then, samples of the wall cladding were taken back to the laboratory for product quality assurance. Measurements of the samples show that the product experiences 3% of shrinkage in term of width and 1% of shrinkage in term of thickness. Water absorption test indicates an increase of 13.6% of weight after 24 hours immersion of water. Impact strength test was also conducted on the wall cladding samples and the mean result was 2.55 kJ/m². Tensile test on the extruded KPC product indicates a low tensile strength at 4.51 MPa and tensile modulus of 205.01 MPa. The sample also proven to be light weight as the density of the material was found to be 0.618g/cm³.

References

[1] A.K. Mohanty, M. Misra, T.D. Lawrence: Natural Fibers, Biopolymers and Biocomposites (CRC Press, Boca Raton, Florida 2005).

[2] R.M. Rowell and H.P. Stout, in: Jute and Kenaf in Handbook of Fiber Chemistry, CRC/ Taylor & Francis, Boca Raton (2007).

[3] A.K. Bledzki and J. Gassan, in: Prog. Polym. Sci. Vol. 24 (2) (1999).

[4] H.N. Dhakal, Z.Y. Zhang and M.O. W: Effect of water absorption on the mechanical properties of hemp fibre reinforced unsaturated polyester composites. Richardson Composites Science and Technology Volume 67, Issues 7-8, Pages 1674-1683 (2007).

DOI: 10.1016/j.compscitech.2006.06.019

[5] J.L. Thomason: Why are natural fibres failing to deliver on composite performance? In: 17th International Conference on Composite Materials, ICCM17, 27-31 July, Edinburgh, References and further reading may be available for this article. To view references and further reading you must purchase this article. UK (2009).

[6] Abdalla A. Ab. Rashdi, Mohd Sapuan Salit, Khalina Abdan and Megat Mohamad Hamdan Megat: Water absorption Behaviour of Kenaf Reinforced Unsaturated Polyester Composites and Its Influence on Their Mechanical Properties. Pertanika J. Sci. & Technol. 18 (2): 433 – 440 (2010).

DOI: 10.1177/096739111001800606

[7] G.C. Yang, H.M. Zeng, L.J., Jian, N.B. and Z. Wb: Relation of modification and tensile properties of sisal fibre. Acta Scientiarum Naturalium Universitatis Sunyatseni, 35, 53-57 (1996).

[8] M.M. Thwe and L. Kin: Effects of environmental ageing on the mechanical properties of bamboo-glass fibre reinforced polymer matrix hybrid composites. Composites Part A, 33, 43-52 (2002).

DOI: 10.1016/s1359-835x(01)00071-9

[9] A. Ahmad Shamizan, A. Khalina, H. Jalaluddin, M.Z. Hasniza, W.H. Wan Mohamad Haniffah, M.Y. Yusri and M.G. Shuriati, in: Tensile properties of Kenaf fiber reinforced polypropylene composite prepared by twin screw extruder. Book chapter, Research in Natural Fiber Composite UPM Press (2009).

DOI: 10.3139/120.110220
