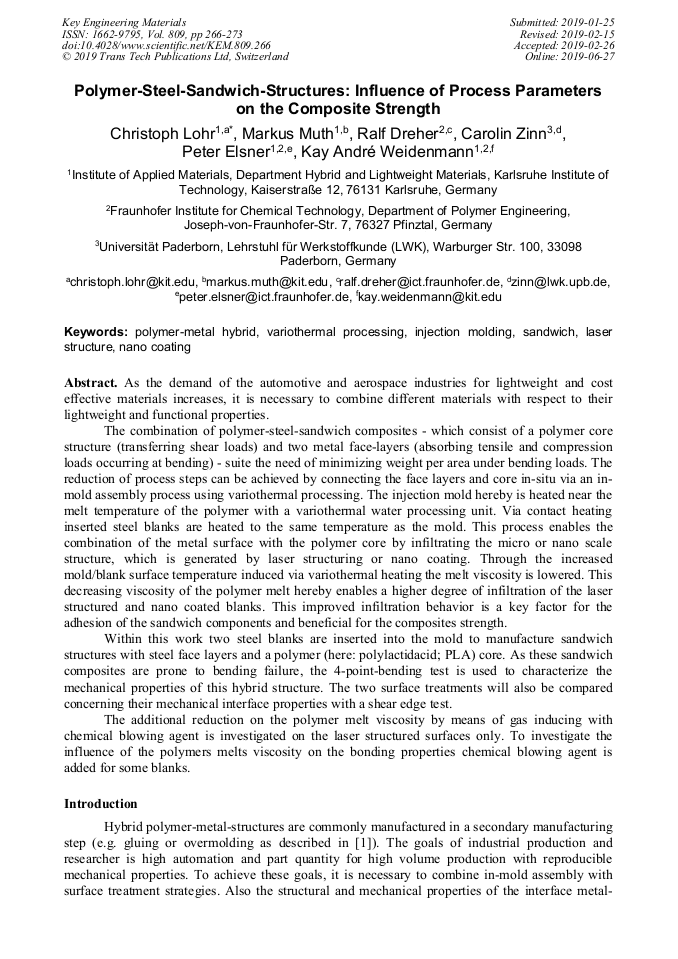

Polymer-Steel-Sandwich-Structures: Influence of Process Parameters on the Composite Strength

Abstract:

As the demand of the automotive and aerospace industries for lightweight and cost effective materials increases, it is necessary to combine different materials with respect to their lightweight and functional properties. The combination of polymer-steel-sandwich composites - which consist of a polymer core structure (transferring shear loads) and two metal face-layers (absorbing tensile and compression loads occurring at bending) - suite the need of minimizing weight per area under bending loads. The reduction of process steps can be achieved by connecting the face layers and core in-situ via an in-mold assembly process using variothermal processing. The injection mold hereby is heated near the melt temperature of the polymer with a variothermal water processing unit. Via contact heating inserted steel blanks are heated to the same temperature as the mold. This process enables the combination of the metal surface with the polymer core by infiltrating the micro or nano scale structure, which is generated by laser structuring or nano coating. Through the increased mold/blank surface temperature induced via variothermal heating the melt viscosity is lowered. This decreasing viscosity of the polymer melt hereby enables a higher degree of infiltration of the laser structured and nano coated blanks. This improved infiltration behavior is a key factor for the adhesion of the sandwich components and beneficial for the composites strength. Within this work two steel blanks are inserted into the mold to manufacture sandwich structures with steel face layers and a polymer (here: polylactidacid; PLA) core. As these sandwich composites are prone to bending failure, the 4-point-bending test is used to characterize the mechanical properties of this hybrid structure. The two surface treatments will also be compared concerning their mechanical interface properties with a shear edge test. The additional reduction on the polymer melt viscosity by means of gas inducing with chemical blowing agent is investigated on the laser structured surfaces only. To investigate the influence of the polymers melts viscosity on the bonding properties chemical blowing agent is added for some blanks.

References

[1] M. Grujicic. Injection Over Molding of Polymer-Metal Hybrid Structures. American Journal of Science and Technology. Vol. 1, No. 4, 2014, pp.168-181.

[2] C. Rytka, P. Kristiansen, A. Neyer. Iso- and variothermal injection compression moulding of polymer micro- and nanostructures for optical and medical applications. Journal of Micromechanics and Microengineering, 2015, Vol. 25, No. 6, p.65008.

DOI: 10.1088/0960-1317/25/6/065008

[3] M.A. Montealegre, G. Castro, P. Rey, J.L. Arias, P. Vázquez, M. González. Surface treatments by laser technology. CM 2010;1(1):19–30.

DOI: 10.5767/anurs.cmat.100101.en.019m

[4] A. Kurtovic, E. Brandl, T. Mertens, H.J. Maier. Laser induced surface nano-structuring of Ti–6Al–4V for adhesive bonding. Int J Adhesion Adhes 2013; 45:112–7.

DOI: 10.1016/j.ijadhadh.2013.05.004

[5] A. Taube, A. Kurtovic, T. Niendorf, T. Mertens, C. Zinn, M. Schaper, H.J. Maier. 2016. Influence of surface pre-treatments on the high-cycle fatigue behavior of Ti-6Al-4V – From anodizing to laser-assisted techniques. International Journal of Fatigue. 91. 1. pp.195-203.

DOI: 10.1016/j.ijfatigue.2016.06.010

[6] E.G. Baburaj, D. Starikov, J. Evans, G.A. Shafeev, A. Bensaoula. Enhancement of adhesive joint strength by laser surface modification. International Journal of Adhesion and Adhesives 2007; 27(4): 268–76.

DOI: 10.1016/j.ijadhadh.2006.05.004

[7] J. Byskov-Nielsen, P. Balling. Laser structuring of metal surfaces: micro-mechanical interlocking. Journal of Applied Surface Science 2009;255(10):5591–4.

DOI: 10.1016/j.apsusc.2008.07.118

[8] J. Haubrich, E. Kramer, K. Schulze, J. Hausmann, editors. Laser-induced chemical modification and nanostructuring: the interface between TWIP steel and PEEK. 2014. Euro Hybrid Materials and Structures 2014, 10.-11. April 2014, Stade.

[9] C. Mandolfino, E. Lertora, S. Genna, C. Leone, C. Gambaro. Effect of laser and plasma surface cleaning on mechanical properties of adhesive bonded joints. Procedia CIRP 2015;33:458–63.

DOI: 10.1016/j.procir.2015.06.054

[10] C. Zinn, M. Schaper, J.S. Gonzalez, D. Meiners, Z. Wang, T. Troester, F. Pottmeyer, K. A. Weidenmann. 2016. Shear edge tests. A benchmark in investigating the influence of different surface pretreatment methods on the shear stress of intrinsically manufactured metal-CFRP hybrids. IJAUTOC 2, 3/4, pp.244-271.

DOI: 10.1504/ijautoc.2016.084321

[11] C. Zinn, M. Bobbert, C. Dammann, Z. Wang, T. Tröster, R. Mahnken, G. Meschut, M. Schaper. 2018. Shear strength and failure behaviour of laser nano-structured and conventionally pre-treated interfaces in intrinsically manufactured CFRP-steel hybrids. Composites Part B: Engineering, 151, pp.173-185.

DOI: 10.1016/j.compositesb.2018.05.030

[12] C. Zinn, Z. Wang, M. Schaper, T. Tröster. 2018. Influence of a laser pre-treatment on the mechanical and the corrosion properties of metal-CFRP hybrid structures manufactured by RTM. 20th International Conference on Composite Structures (ICCS20). 06.09.2017. Paris.

[13] Z. Wang, M. Bobbert, C. Dammann, C. Zinn, C. Lauter, R. Mahnken, G. Meschut, M. Schaper, T. Tröster, 2016. Influences of interface and surface pretreatment on the mechanical properties of metal-CFRP hybrid structures manufactured by resin transfer moulding. International Journal of Automotive Composites. 2. 3/4. pp.272-298.

DOI: 10.1504/ijautoc.2016.084323

[14] J. Serna, C. Zinn, I. Scharf, C. Schmidt, S.-D. Schwoebel, D. Meiners, M. Schaper, T. Lampke, A. Dittes. Concepts for Interface Engineering and Characterization in Composite Hybrid Structures. IOP Conference Series: Materials Science and Engineering. 2018, accepted.

DOI: 10.1088/1757-899x/480/1/012014

[15] X. Qin, M. R. Thompson, A. N. Hrymak und A. Torres: Rheological Comparison of Chemical and Physical Blowing Agents in a Thermoplastic Polyolefin. Industrial & Engineering Chemistry Research 45 (2006) 8, S. 2734–2740.

DOI: 10.1021/ie0510932

[16] R. Dreher, R. Emmerich, H. Urban, M. Graf, R. Bräuning, K. Nauenburg. German Patent DE102011086399B4.

[17] K. A. Weidenmann, L. Baumgärtner und B. Haspel. The Edge Shear Test - an Alternative Testing Method for the Determination of the Interlaminar Shear Strength in Composite Materials,, Materials Science Forum, pp.825-826, 23 03 (2015).

DOI: 10.4028/www.scientific.net/msf.825-826.806

[18] M. Stoll und K. A. Weidenmann. Characterization of Interface Properties of Fiber-Metal-Laminates (FML) with Optimized Surfaces. Euro Hybrid Materials and Structures, Kaiserslautern, 2016. KITopen-ID: 1000058586.

[19] H. Werner, I. Sönmez, R. Wendel, K. A. Weidenmann, F. Henning, Characterization of the Interlaminar Shear Strength of Fiber Metal Laminates with Reactively Processed Thermoplastic Matrix, SAMPE Europe Conference 2017 pp.1-7, Stuttgart, 2017. https://www.ict.fraunhofer.de/content/dam/ict/en/documents/technical_contributions/pe/PE_HFV_Characterization_of_the_interlaminar_shear_strength.pdf.

[20] DIN EN ISO 14125:2011, Faserverstärkte Kunststoffe Bestimmung der Biegeeigenschaften.

DOI: 10.31030/1753441
