Impact of Hydrogenation on Electrical Properties of NiSi2 Precipitates in Silicon

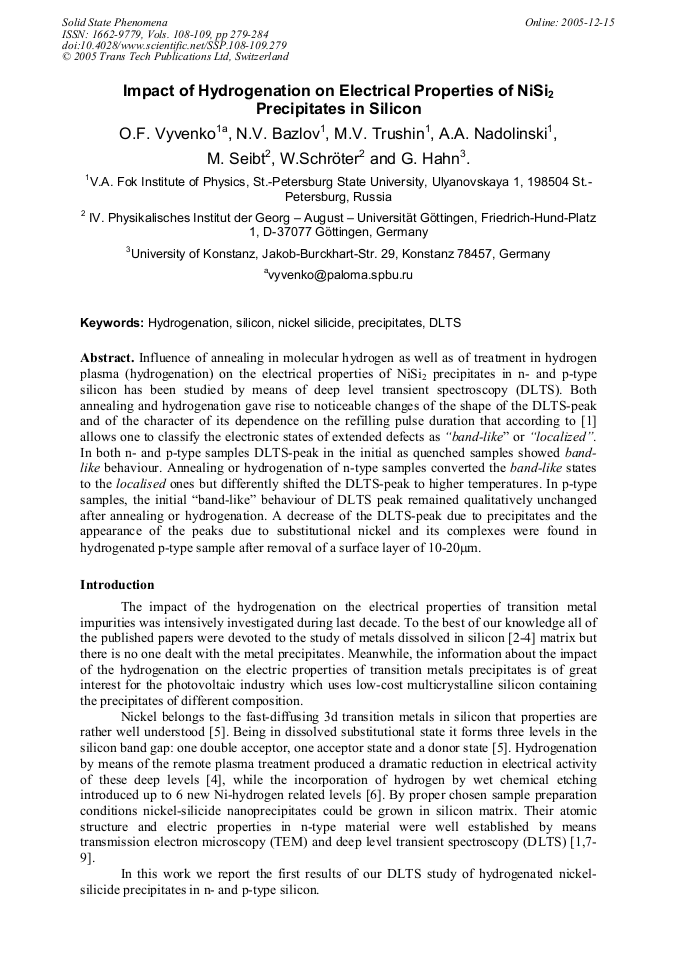

Article Preview

Abstract:

Influence of annealing in molecular hydrogen as well as of treatment in hydrogen plasma (hydrogenation) on the electrical properties of NiSi2 precipitates in n- and p-type silicon has been studied by means of deep level transient spectroscopy (DLTS). Both annealing and hydrogenation gave rise to noticeable changes of the shape of the DLTS-peak and of the character of its dependence on the refilling pulse duration that according to [1] allows one to classify the electronic states of extended defects as “band-like” or “localized”. In both n- and p-type samples DLTS-peak in the initial as quenched samples showed bandlike behaviour. Annealing or hydrogenation of n-type samples converted the band-like states to the localised ones but differently shifted the DLTS-peak to higher temperatures. In p-type samples, the initial “band-like” behaviour of DLTS peak remained qualitatively unchanged after annealing or hydrogenation. A decrease of the DLTS-peak due to precipitates and the appearance of the peaks due to substitutional nickel and its complexes were found in hydrogenated p-type sample after removal of a surface layer of 10-20µm.

You might also be interested in these eBooks

Info:

Periodical:

Solid State Phenomena (Volumes 108-109)

Pages:

279-284

Citation:

Online since:

December 2005

Export:

Price:

Сopyright:

© 2005 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] W. Schröter, J. Kronewitz, U. Gnauert, F. Riedel and M. Seibt, Phys. Rev. B 52, (1995), pp.13-726.

Google Scholar

[2] J. -U. Sachse, E.Ö. Sveinbjörnsson, N. Yarykin and J. Weber, Materials Science and Engineering B58, 1999, p.134.

Google Scholar

[3] S.J. Pearton and A.J. Tavendale: J. Appl. Phys. 54(3), (1983), p.1375.

Google Scholar

[4] S.J. Pearton and A.J. Tavendale: Phys. Rev. B 26, 12 (1982), p.7105.

Google Scholar

[5] K. Graff: Metal Impurities in Silicon - Device Fabrication (Berlin, Springer, 1999).

Google Scholar

[6] M. Shiraishi, J. -U. Sachse, H. Lemke, J. Weber: Materials Science and Engineering B58, 1999, p.130.

Google Scholar

[7] F. Riedel and W. Schröter: Phys. Rev B, 2000. 62(11): p.7150.

Google Scholar

[8] M. Seibt, H. Hedemann, A.A. Istratov, F. Riedel, A. Sattler and W. Schröter: Phys. Stat. Sol. (a) 171 (1999), p.301.

DOI: 10.1002/(sici)1521-396x(199901)171:1<301::aid-pssa301>3.0.co;2-p

Google Scholar

[9] W. Schröter, V. Kveder, M. Seibt, H. Ewe, H. Hedemann, F. Riedel, A. Sattler: Materials Science and Engineering B, 2000. 72(2-3): p.80.

DOI: 10.1016/s0921-5107(99)00499-7

Google Scholar

[10] O.F. Vyvenko: Solid State Phenomena Vols 63-64 (1998) p.301.

Google Scholar

[11] O.V. Feklisova, A.L. Parakhonski, E.B. Yakimov, J. Weber, Materials Science and Engineering B71, 2000, p.268.

Google Scholar
