Hydrogenation in Crystalline Silicon Materials for Photovoltaic Application

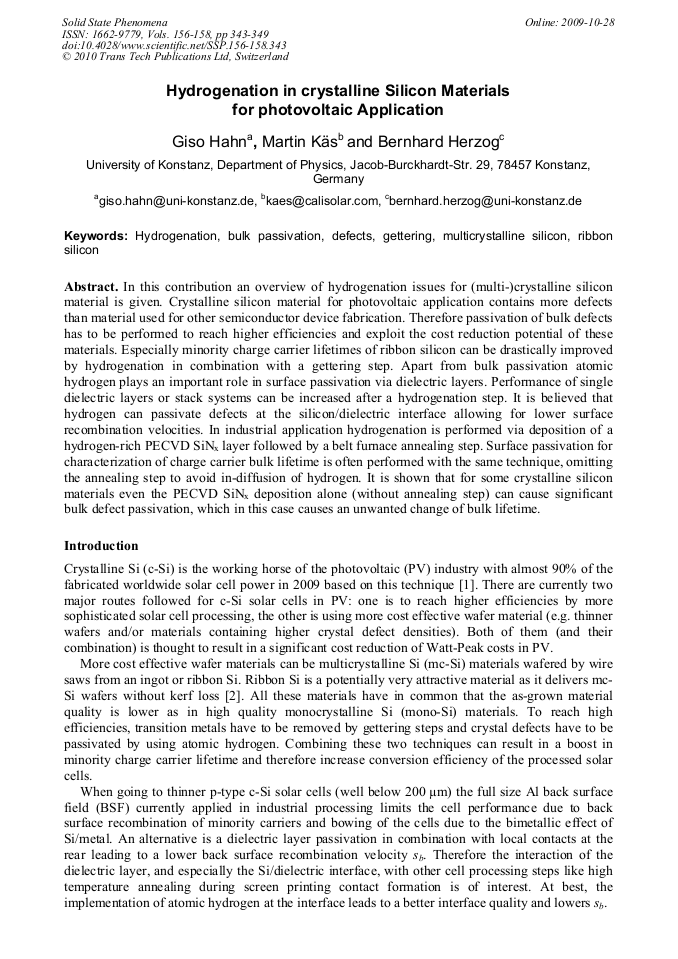

Article Preview

Abstract:

In this contribution an overview of hydrogenation issues for (multi-)crystalline silicon material is given. Crystalline silicon material for photovoltaic application contains more defects than material used for other semiconductor device fabrication. Therefore passivation of bulk defects has to be performed to reach higher efficiencies and exploit the cost reduction potential of these materials. Especially minority charge carrier lifetimes of ribbon silicon can be drastically improved by hydrogenation in combination with a gettering step. Apart from bulk passivation atomic hydrogen plays an important role in surface passivation via dielectric layers. Performance of single dielectric layers or stack systems can be increased after a hydrogenation step. It is believed that hydrogen can passivate defects at the silicon/dielectric interface allowing for lower surface recombination velocities. In industrial application hydrogenation is performed via deposition of a hydrogen-rich PECVD SiNx layer followed by a belt furnace annealing step. Surface passivation for characterization of charge carrier bulk lifetime is often performed with the same technique, omitting the annealing step to avoid in-diffusion of hydrogen. It is shown that for some crystalline silicon materials even the PECVD SiNx deposition alone (without annealing step) can cause significant bulk defect passivation, which in this case causes an unwanted change of bulk lifetime.

You might also be interested in these eBooks

Gettering and Defect Engineering in Semiconductor Technology XIII

Info:

Periodical:

Solid State Phenomena (Volumes 156-158)

Pages:

343-349

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.156-158.343

Citation:

Cite this paper

Online since:

October 2009

Authors:

Giso Hahn, Martin Käs, Bernhard Herzog

Keywords:

Bulk Passivation, Defect, Gettering, Hydrogenation, Multicrystalline Silicon, Ribbon

Export:

RIS, BibTeX

Price:

Permissions:

Request Permissions

Сopyright:

© 2010 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] Photon 2009(4), p.54.

[2] G. Hahn and A. Schönecker, J. Phys.: Condens. Matter 16 (2004), p. R1615.

[3] A.W. Stephens and M.A. Green, Sol. Energy Mat. Sol. Cells Vol. 45 (1997), p.255.

[4] A.G. Aberle: Advanced Surface Passivation and Analysis (Centre for Photovoltaic Engineering, UNSW, Australia 1999).

[5] C.E. Dube and J.I. Hanoka, Proc. 31 st IEEE PVSC, Lake Buena Vista 2005, p.883.

[6] G. Hahn, A. Schönecker, A.R. Burgers, R. Ginige, K. Cherkaoui and D. Karg, Proc. 20 th EU PVSEC, Barcelona 2005, p.717.

[7] S. Kleekajai, F. Jiang, M. Stavola, V. Yelundur, K. Nakayashiki, A. Rohatgi, G. Hahn, S. Seren and J. Kalejs, J. Appl. Phys. Vol. 100 (2006), p.093517.

DOI: 10.1063/1.2363684

[8] M. Sheoran, D.S. Kim, A. Rohatgi, H.F.W. Dekkers, G. Beaucarne, M. Young and S. Asher, Appl. Phys. Lett. Vol. 92 (2008), p.172107.

DOI: 10.1063/1.2917467

[9] P. Geiger, G. Kragler, G. Hahn and P. Fath, Sol. Energy Mat. Sol. Cells Vol. 85 (2005), p.559.

[10] A. Rohatgi, V. Yelundur, J. Jeong, A. Ebong, D. Meier, A.M. Gabor and M.D. Rosenblum, Proc. 16th EU PVSEC, Glasgow 2000, p.1120.

[11] A. Rohatgi, D.S. Kim, K. Nakayashiki, V. Yelundur and B. Rounsaville, Appl. Phys. Lett. Vol. 84 (2004), p.145.

[12] M. Käs, G. Hahn and A. Metz, Proc. 31 st IEEE PVSC, Lake Buena Vista 2005, p.923.

[13] A. Van Wieringen and N. Warmoltz, Physica Vol. 22 (1956), p.849.

[14] M. Käs, G. Hahn and A. Metz, Proc. 21 st EUPVSEC, Dresden 2006, p.679.

[15] M.P. Godlewski, C.R. Baraona and H.W. Brandhorst, Proc. 10 th IEEE PVSC, Palo Alto 1973, p.40.

[16] G. Agostinelli, P. Choulat, H.F.W. Dekkers, Y. Ma and G. Beaucarne, 21 st EU PVSEC, Dresden 2006, p.601.

[17] N.E. Posthuma, T. Janssens, E. Van Kerschaver, P. Choulat, X. Loozen, Y. Ma, J. John, G. Beaucarne and J. Poortmans, 23rd EUPVSEC, Valencia 2008, p.1600.

[18] M. Käs, G. Hahn, A. Metz, G. Agostinelli, Y. Ma, J. Junge, A. Zuschlag and D. Grötschel, Proc. 22nd EC PVSEC Milan 2007, p.897.

[19] F. Book, B. Raabe, A. Dastgheib-Shirazi, H. Haverkamp and G. Hahn, Proc. 24 th EU PVSEC, Hamburg 2009, in press.

[20] G. Hahn C. Zechner, B. Bitnar, M. Spiegel, W. Jooss, P. Fath, G. Willeke, E. Bucher and H. - U. Höfs, Prog. Photovolt. Res. Appl. Vol. 6 (1998), p.163.

DOI: 10.1002/(sici)1099-159x(199805/06)6:3<163::aid-pip219>3.0.co;2-h

[21] B. Herzog, B. Raabe and G. Hahn, 22 nd EU PVSEC Milan 2007, p.1722.

[22] B. Herzog, G. Hahn, M. Hofmann, I.G. Romijn and A.W. Weeber, Proc. 23rd EU PVSEC, Valencia 2008, p.1863.
