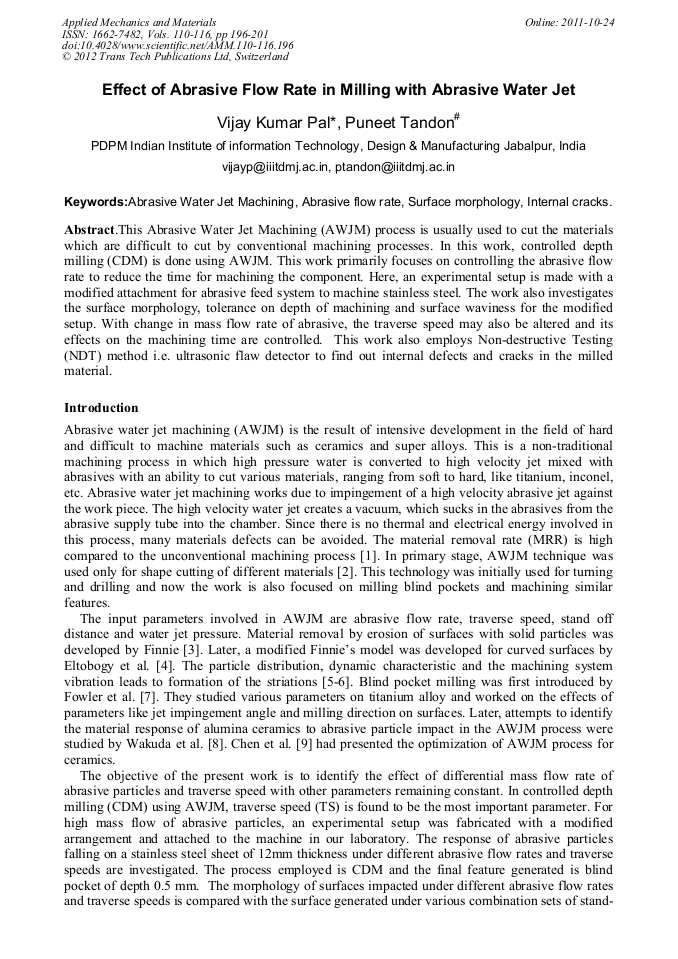

Effect of Abrasive Flow Rate in Milling with Abrasive Water Jet

Abstract:

This Abrasive Water Jet Machining (AWJM) process is usually used to cut the materials which are difficult to cut by conventional machining processes. In this work, controlled depth milling (CDM) is done using AWJM. This work primarily focuses on controlling the abrasive flow rate to reduce the time for machining the component. Here, an experimental setup is made with a modified attachment for abrasive feed system to machine stainless steel. The work also investigates the surface morphology, tolerance on depth of machining and surface waviness for the modified setup. With change in mass flow rate of abrasive, the traverse speed may also be altered and its effects on the machining time are controlled. This work also employs Non-destructive Testing (NDT) method i.e. ultrasonic flaw detector to find out internal defects and cracks in the milled material.

• Periodical: Applied Mechanics and Materials (Volumes 110-116)
• Pages: 196-201
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.110-116.196
• Online since: October 2011
• Authors: Vijay Kumar Pal, Puneet Tandon
• Keywords: Abrasive Flow Rate, Abrasive Water Jet Machining, Internal Cracks, Surface Morphology

References

[1] Ahmet H., Ulas C. and Hakan G., Effect of traverse speed on abrasive water jet machining of Ti-6Al-4V alloy, Journal of Materials and Design, 2007, 28, 1953-(1957).

DOI: 10.1016/j.matdes.2006.04.020

[2] Kovacevic R., Surface texture in abrasive water jet cutting, Journal of Manufacturing Systems, 1991, 10(1), 32-40.

DOI: 10.1016/0278-6125(91)90045-4

[3] Finnie I., Erosion of surfaces by solid particles, Wear, Vol 3, page 87-103.

[4] Eltobgy M., E-G Ng and Elberstawi M. A., Modeling of Abrasive Water jet Machining: A New Approach, CIRP Annals, Manufacturing Technology, 2005, 54 (1), 285-288.

DOI: 10.1016/s0007-8506(07)60104-8

[5] Chen F. L. and Siores E., The effect of cutting jet variation on striation formation in abrasive water jet cutting, International Journal of Machine Tool & Manufacture, 2001, 41(10), 1479-1486.

DOI: 10.1016/s0890-6955(01)00013-x

[6] Chen F. L. et al., Striation formation mechanisms on the jet cutting surface", , Journal of Material Processing Technology, 2003, 157, 213-218.

[7] Fowler G., Shipway P. H. and Pashby I R, A technical note on grit embedment following abrasive water jet milling of titanium alloy, Journal of Material Processing Technology, 2005, 159, 356-368.

DOI: 10.1016/j.jmatprotec.2004.05.024

[8] Manabu W., Yukihiko Y. and Shuzo K., Material Response to Particle Impact during Abrasive Jet Machining of Alumina Ceramics, Journals of Materials Processing Technology, 2003, 157, 177-183.

DOI: 10.1016/s0924-0136(02)00848-8

[9] Chen L, Siores E, Wong W C K, Optimizing abrasive waterjet cutting of ceramic materials, Journal of Material Processing Technology 1998, 74, 251-254.

DOI: 10.1016/s0924-0136(97)00278-1

[10] http: /nptel. iitm. ac. in/courses/webcourse-contents/IIT%20kharagpur/Manuf%20proc%2011/pdf/LM-37. pdf.
